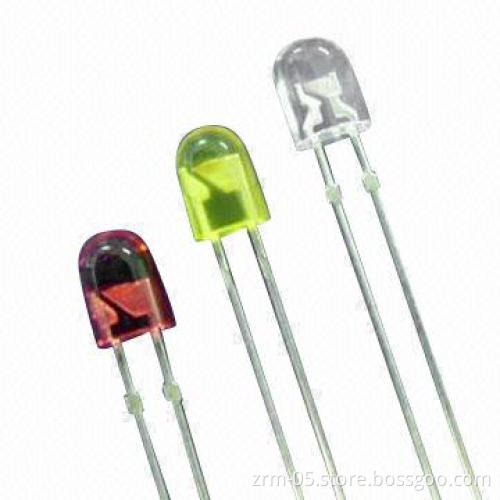

5mm LED COB Diodes High-power LEDs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Good quality and clear appearance

Rustproof on surface of lead pin

With CE and RoHS approvals

Professional LED manufacturer

Forward voltage: 1.60 to 2.65V

Reverse current: 1.1uA (maximum at condition Vr = 5V)

Dominant wavelength: 570 to 574nm

Luminous intensity: 328 to 468mcd

Viewing angle: 38°

Forward current: 50mA maximum

Peak forward current: 220mA

Continuous forward current: 20mA

Reverse voltage: 5V

Power dissipation: 105mW

Operating temperature: -40 ±80°C

Storage temperature: -40 ±80°C

Lead soldering temperature: 260°C
