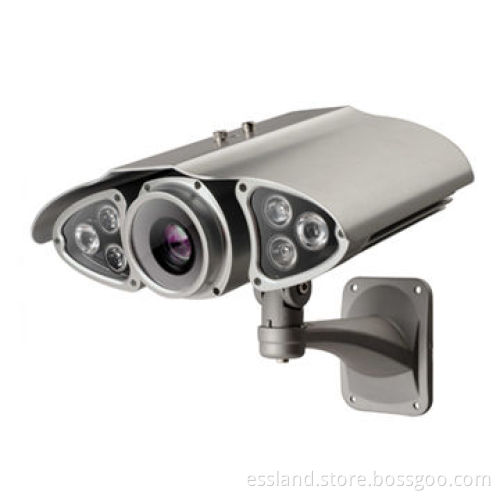

Megapixel IP camerasNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Overview:

H.264 & mjpeg dual-stream encoding

720p: 1280*720@30fps

8/12/16/25mm lens

6pcs array IR LED, ir illumination: 100m, 0lux ir on

Technical specifications:

Signal system: progressive image scan

Scanning system: 16:9 progressive

Image sensor: 1/4-inch 1.0 megapixel ov 9712

Effective pixels no.: 1280(h) x720(w)

Video output level: 1.0vp-p (bnc 75Ω composite)

Day & night system: mechanical icr

Brightness: auto/manual

Contrast: auto/manual

Mirror: yes

Heatbeat message: yes

Compression: h.264/mjpeg

Frame rate: 1280x720 1-30fps, 640x480 1-30fps

Resolution: 1280x720, 640x360, 320x240

Code stream: 128kbps~8mbps, vbr/cbr

Audio: two-way, g.711a/u

Protocol: http, tcp/ip, udp, smtp, ddns, dns, sntp, dhcp, ftp, rtp, rtsp, upnp, onvif

DDNS: yes

LAN interface: ethernet 10/100 base-t, rj45 x1

After event process: upload jpeg via ftp, email or specified alarm center

Onvif standard access: onvif v2.4

Motion detection: yes, support multiple setting areas

Browser: internet explorer 6.0 or above

System upgrade: yes, firmware upgrade

Web configuration: yes

IP rating: ip66

Operation temperature: -10-45°C (14-113°F)

Operation humidity: 10-90% (no condensation)

Power: dc12v

Dimension (l*w*h): 300*280*210mm

Weight: 2.5kg
