Basic Info

Payment Type:	T/T or L/C

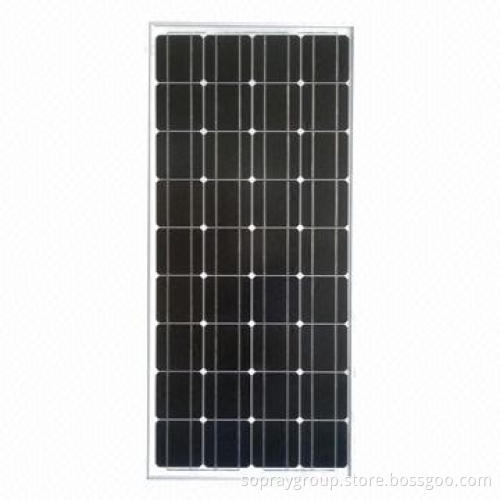

Product Description

Mono/poly: mono

Number of cells: 36 pieces (4 x 9)

Maximum power: 70, 75, 80, 85, 90Wp

Maximum power voltage: 18.00V

Maximum power current: 3.89, 4.16, 4.44, 4.72, 5.00

Open circuit voltage: 21.60

Short circuit currents: 4.14, 4.58, 4.88, 5.20, 5.38

Cell efficiency: 13.20, 14.05, 15.00, 16.00, 17.00%

Size of cell: 125 x 125mm

Size of module: 1210 x 540 x 30mm

Maximum system voltage: 1000V

Temperature coefficients of Isc: +0.1%/°C

Temperature coefficients of Voc: -0.38%/°C

Temperature coefficients of Pm: -0.47%/°C

Temperature coefficients of Im: +0.1%/°C

Temperature coefficients of Vm: -0.38%/°C

Temperature range: -40 to +85°C

Surface maximum load capacity: 60mps (200kg/m²)

Allowable hail load: steel ball fall down from 1m height

Weight per piece: 8.5kg

Output tolerance: ±5%

Frame (material and corners): aluminum

Standard test conditions: 1000W/m², AM1.5, 25°C

Warranty: 2 years product warranty and 25 years 80% of power

FF: ≥73%

Packing:

Quantity: 2 pieces of panel are putting into one outer seaworthy carton, then put on pallet
