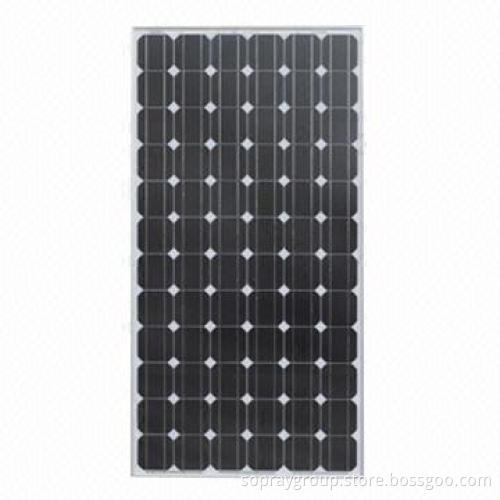

Maximum Loading Capacity Solar Panel Module with High Cell and Module Efficiency

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Item numbers: 120, 130, 140 and 150

Mono/poly: 156 x 156 mono

Maximum power: 120, 130, 140 and 150wP

Maximum power at STC (Pmax): 21.53, 2.16, 22.03 and 22.45V

Optimum operating voltage (Vmp): 17.57, 17.96, 18.36 and 18.72V

Short-circuit current (Isc): 7.35, 7.83, 8.23 and 8.36A

Module efficiency: 13.25, 14.35, 15.25 and 16.55%

Cell efficiency: 13.75, 15.00, 15.25 and 17.25%

Number of cells: 36 pieces

Cell size: 156 x 156mm

Module size: 1484 x 669 x 35mm

Maximum system voltage: 1,000V

Temperature coefficients:

Isc: 0.1%/°C

Voc: -0.38%/°C

Pm: -0.47%/°C

Im: 0.1%/°C

Vm: 0.38%/°C
