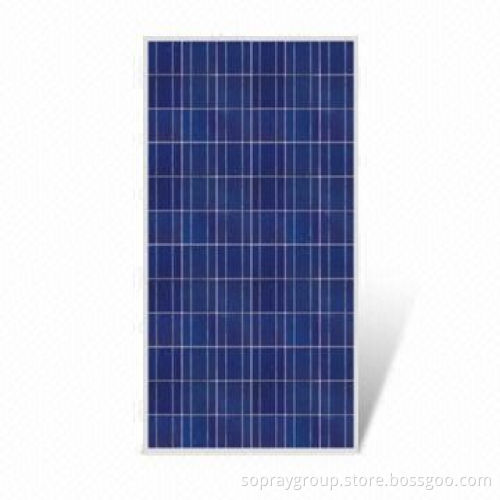

Solar Panels, Outstanding Electrical Performance, Under High Temperature and Low Radiance Conditions

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum power at STC (Pmax): 210, 220, 230, 240 and 250WP

Open-circuit voltage: 36.4, 36.8, 37, 37.5, 38 and 38.5V

Optimum operating voltage (Vmp): 29.2, 29.8, 30, 30.6, 31.2 and 31.8V

Short-circuit current (Isc): 7.86, 8.00, 8.18, 8.38, 8.65 and 8.91A

Module efficiency: 13.70, 14.30, 15.00, 15.80, 16.50, 16.50 and 17.10%

Solar cell efficiency: 14.50, 15.00, 15.75, 16.50, 17.25 and 17.75%

Number of cells: 60 (6 x 10) pieces

Size of cell: 156 x 156mm poly

Size of module: 1650 x 992 x 46mm

Maximum system voltage: 1000V

Temperature coefficients:

Surface maximum load capacity: 60m/s (200kg/m²)

Allowable hail load: steel ball fall down from 1m height

Weight per piece: 23kg

Junction box type: PV-RH701 (TUV)

Connectors and cables type

Certificate: TUV

Length of cables: 900mm

Output tolerance: ±5%

Material: aluminum

Standard test conditions: 1.000W/m², AM1.5, 25°C

Warranty: 10 years and 25 years 80% of power

FF: ≥73%

Isc: +0.1°CVoc: -0.38°C

Pm: -0.47°CIm: +0.1°CVm: -0.38°C

Temperature range: -40 to 85°C
