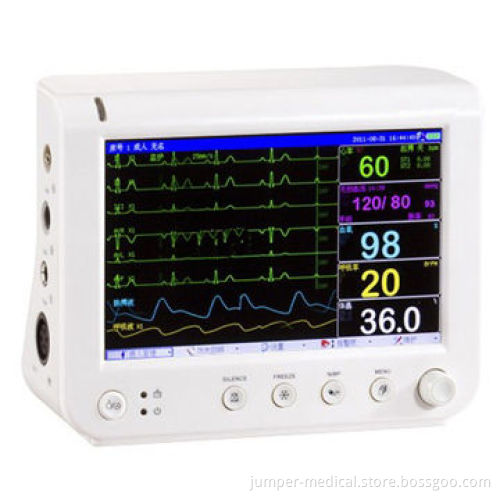

Vital Signs Monitor, 7-inch TFT Screen, CE-certified, 6 Parameters, Light Weight, Good for Transport

Vital Signs Monitor, 7-inch TFT Screen, CE-certified, 6 Parameters, Light Weight, Good for Transport

Get Latest Price

Payment Type:: 100% T/T in Advance, PayPal, Western Union or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	100% T/T in Advance, PayPal, Western Union or L/C

Product Description

Standard configuration:

Display: 7-inch (16:9) TFT wide screen
Resolution: 800 x 480p
Unique human voice alarm
System software can be upgraded through network
Can be used for animals
With ECG, Spo2, PR, NIBP, RR and temperature

Functions:

6-display interface
720-hour trend data storage and 12 hours waveform review
Voice alarm
Supports wired and wireless networking
Supports software upgrade online

Specifications:

ECG:
- Leads mode: 5
- Gain: 1/4, 1/2, 1, 2 and 4mm/mV
- Scanning speed: 12.5, 25 and 50mm/s
- Frequency response: diagnosis 0.05 to 130Hz
- Monitoring: 0.5 to 40Hz
- Operating: 1.0 to 20Hz
- Heart rate range: 15 to 350bpm
- Heart rate accuracy: ±1%
- ST segment analysis: -0.8 to +0.8mV
- ST segment accuracy: ±0.02mV
NIBP:
- Measure and alarm range
- Adult mode
- SYS: 40 to 280mmHg
- DIA: 10 to 220mmHg
- MEAN: 20 to 240mmHg
Pediatric modes:
- SYS: 40 to 220mmHg
- DIA: 10 to 160mmHg
- MEAN: 20 to 170mmHg
Neonatal modes:
- SYS: 40 to 135mmHg
- DIA: 10 to 100mmHg
- MEAN: 20 to 110mmHg
Static pressure range: 0 to 300mmHg
Static pressure accuracy: ±3mmHg or 2%
Resolution: 1mmHg
Protection mode, dual over voltage protection

SPO₂:

Measure range: 1 to 100%
Accuracy: ±2% (70 to 100%)
Resolution: 1%

Pulse rate:

Measure range: 20 to 300bpm
Accuracy: ±2bpm
Resolution: 1bpm

Temperature:

Channels: 2
Measure range: 0 to 50°C
Accuracy: ±0.1°C
Resolution: 0.1°C

Respiration:

Measure range:
- Adult: 0 to 120BrPM
- Pediatric/neonatal: 0 to 150BrPM
Accuracy: ±2%
Resolution: 1bpm

Optional:

Lithium battery (built-in)

Display: 7-inch (16:9) TFT wide screen

Resolution: 800 x 480p

Unique human voice alarm

System software can be upgraded through network

Can be used for animals

With ECG, Spo2, PR, NIBP, RR and temperature

6-display interface

720-hour trend data storage and 12 hours waveform review

Voice alarm

Supports wired and wireless networking

Supports software upgrade online

ECG:

Leads mode: 5
Gain: 1/4, 1/2, 1, 2 and 4mm/mV
Scanning speed: 12.5, 25 and 50mm/s
Frequency response: diagnosis 0.05 to 130Hz
Monitoring: 0.5 to 40Hz
Operating: 1.0 to 20Hz
Heart rate range: 15 to 350bpm
Heart rate accuracy: ±1%
ST segment analysis: -0.8 to +0.8mV
ST segment accuracy: ±0.02mV

NIBP:

Measure and alarm range
Adult mode
SYS: 40 to 280mmHg
DIA: 10 to 220mmHg
MEAN: 20 to 240mmHg

Pediatric modes:

SYS: 40 to 220mmHg
DIA: 10 to 160mmHg
MEAN: 20 to 170mmHg

Neonatal modes:

SYS: 40 to 135mmHg
DIA: 10 to 100mmHg
MEAN: 20 to 110mmHg

Static pressure range: 0 to 300mmHg

Static pressure accuracy: ±3mmHg or 2%

Resolution: 1mmHg

Protection mode, dual over voltage protection

Leads mode: 5

Gain: 1/4, 1/2, 1, 2 and 4mm/mV

Scanning speed: 12.5, 25 and 50mm/s

Frequency response: diagnosis 0.05 to 130Hz

Monitoring: 0.5 to 40Hz

Operating: 1.0 to 20Hz

Heart rate range: 15 to 350bpm

Heart rate accuracy: ±1%

ST segment analysis: -0.8 to +0.8mV

ST segment accuracy: ±0.02mV

Measure and alarm range

Adult mode

SYS: 40 to 280mmHg

DIA: 10 to 220mmHg

MEAN: 20 to 240mmHg

SYS: 40 to 220mmHg

DIA: 10 to 160mmHg

MEAN: 20 to 170mmHg

SYS: 40 to 135mmHg

DIA: 10 to 100mmHg

MEAN: 20 to 110mmHg

Measure range: 1 to 100%

Accuracy: ±2% (70 to 100%)

Resolution: 1%

Measure range: 20 to 300bpm

Accuracy: ±2bpm

Resolution: 1bpm

Channels: 2

Measure range: 0 to 50°C

Accuracy: ±0.1°C

Resolution: 0.1°C

Measure range:

Adult: 0 to 120BrPM
Pediatric/neonatal: 0 to 150BrPM

Accuracy: ±2%

Resolution: 1bpm

Adult: 0 to 120BrPM

Pediatric/neonatal: 0 to 150BrPM

Lithium battery (built-in)
