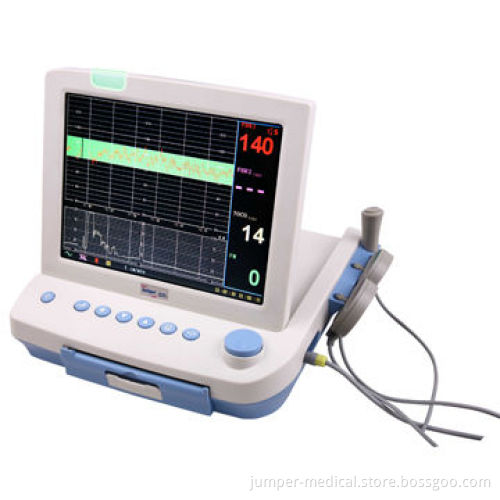

12-inch Fetal Monitor CTG Machine with Tocodynagraph, Phonocardiograph and Printer, CE-certified

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	100% T/T in Advance, PayPal, Western Union, L/C

Product Description

Features:

12.1-inch high resolution color TFT LCD display, supports plug-in large screen CRT display
Standard configurations: FHR, TOCO, fetal movement, ECG, Spo₂, NIBP, RESP, TEMP and pulse rate
Optional twins
Portable and convenient monitor
Built-in rechargeable Li-ion battery, AC/DC power supply, without interruption monitor
Dynamic save and display monitoring information within 48 hours
Support extension almost for 128 units central monitor system
Quality speaker take more clear and loud sound

Specifications:

FHR:
- Ultrasound probe: 12 pieces chip, multiple wafer, wave-beam and high sensitive
- Ultrasound frequency: 1MHz ±5%
- Ultrasound intensity: <3 mW/cm²
- FHR range: 30 to 240bpm
- Resolution: 1bpm
- Accuracy: ±1bpm/1%
TOCO:
- TOCO range: 0 to 100 (relative unit)
- Resolution: 1bpm
- Non-linear error: ≤±5%
Fetal movement: button hand count (automatic cumulative number of movements)
NIBP:
- Measurement units: mmHg/kPa are optional
- Pressure protection: double security protection software and hardware
- Work mode: auto and manual
- Measurement intervals: 2 to 60 minutes setup
- Survey:
  - Systolic blood pressure: 60 to 240mmHg
  - Average blood pressure: 40 to 200mmHg
  - Diastolic blood pressure: 30 to 180mmHg
  - Resolution: 1mmHg
  - Accuracy: ±3mmHg
- Pulse rate: 40 to 240bpm
SPO₂:
- Range: 70 to 99%
- Resolution: 1%
- Accuracy: ±2 effective digital
- Pulse rate range: 40 to 240bpm
ECG:
- Range: 30 to 300bpm
- Accuracy: ±1bpm/1%
- Choices: I, II, III, aVR, aVL, aVF and V
- Scan speeds: 12.5, 25 and 50mm/s
- Gain choices: x0.25, x0.5, x1 and x2
- Applications: diagnosis, monitor and surgery
Respiration:
- Range: 1 to 99rpm
- Resolution: 1rpm
- Accuracy: ±2rpm
Printer: 152mm usual thermal paper and more economical
