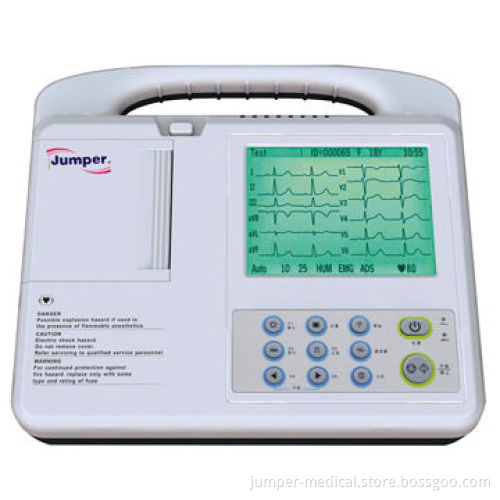

6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
  • 6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
  • 6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
  • 6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
  • 6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
  • 6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
  • 6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
  • 6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
  • 6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew
6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew

6-channel Digital ECG Machine, Electrocardiograph with Measure and Interpretation for HospitalNew

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • 6CH digital ECG machine with interpretation
    • Simultaneous acquisition of 12-lead ECG signal
    • Manual/auto/arrhythmia analysis modes
    • Real-time ECG and 20 patients cases
    • Multiple printing modes
    • 112mm 3/6CH format recording
    • 320 x 240 graphic and 5.7-inch LCD
    • High-resolution thermal printing system
    • High-resolution digital filter
    • Built-in USB or RS232, optional PC-ECG software
    • AC/DC power, built-in rechargeable NiMH battery
    • Lightweight with handle, convenient for use
  • Specifications:
    • Safety standards: IEC 60601-1 class I, type CF
    • Lead: standard 12 leads, lead change automatically
    • Resolution: 12 bits/1,000Hz
    • Operation modes: manual/auto/analysis
    • Filter: AC, EMG
    • Drift filter: anti-drift system
    • Input circuit: floating and protection against defibrillator effect
    • CMRR: greater than 100dB (with filter)
    • Input circuit current: less than 0.1μA
    • Input impedance: ≥50ΜΩ
    • Calibrating voltage: 1mV ±3%
    • Frequency responses: 0.05 to 160Hz (IEC)
    • Time constant: greater than 3.2 seconds
    • Noise level: ≤15Vp-p
    • Threshold: ≤20μV
    • Sensitivity: auto 2.5, 5, 10, 20 and 40mm/mV
    • Recording system: high resolution thermal printer
    • Paper speed: 25 and 50mm/s ±3%
    • Recording paper: 112mm x 20m, roll/fold paper
    • Power supply:
      • AC: 220/110V at 50/60Hz
      • DC: 14.4V rechargeable Li-ion battery (2,200mAh)
    • Dimensions: 285 x 265 x 72mm
    • Weight: 2.5kg
  • 6CH digital ECG machine with interpretation
  • Simultaneous acquisition of 12-lead ECG signal
  • Manual/auto/arrhythmia analysis modes
  • Real-time ECG and 20 patients cases
  • Multiple printing modes
  • 112mm 3/6CH format recording
  • 320 x 240 graphic and 5.7-inch LCD
  • High-resolution thermal printing system
  • High-resolution digital filter
  • Built-in USB or RS232, optional PC-ECG software
  • AC/DC power, built-in rechargeable NiMH battery
  • Lightweight with handle, convenient for use
  • Safety standards: IEC 60601-1 class I, type CF
  • Lead: standard 12 leads, lead change automatically
  • Resolution: 12 bits/1,000Hz
  • Operation modes: manual/auto/analysis
  • Filter: AC, EMG
  • Drift filter: anti-drift system
  • Input circuit: floating and protection against defibrillator effect
  • CMRR: greater than 100dB (with filter)
  • Input circuit current: less than 0.1μA
  • Input impedance: ≥50ΜΩ
  • Calibrating voltage: 1mV ±3%
  • Frequency responses: 0.05 to 160Hz (IEC)
  • Time constant: greater than 3.2 seconds
  • Noise level: ≤15Vp-p
  • Threshold: ≤20μV
  • Sensitivity: auto 2.5, 5, 10, 20 and 40mm/mV
  • Recording system: high resolution thermal printer
  • Paper speed: 25 and 50mm/s ±3%
  • Recording paper: 112mm x 20m, roll/fold paper
  • Power supply:
    • AC: 220/110V at 50/60Hz
    • DC: 14.4V rechargeable Li-ion battery (2,200mAh)
  • Dimensions: 285 x 265 x 72mm
  • Weight: 2.5kg
  • AC: 220/110V at 50/60Hz
  • DC: 14.4V rechargeable Li-ion battery (2,200mAh)
