Product Description

Features:

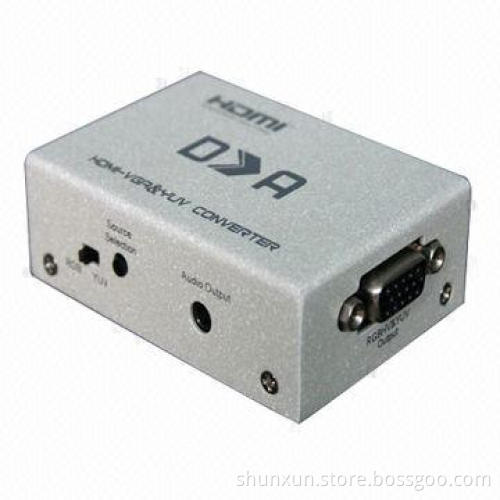

2-to-1 HDMI®-VGA/YPbPr converter lets customer's watch newHDMI® source signal (from set-top box or DVD player) oncustomer's older analog TVs or monitor
Convert HDMI® input to RGBHV/YPbPr/YCbCr output withHD-15D-Sub (VGA style) jack
Two channels input can be switched easily
Users can choose RGBHV or component (YPbPr/YCbCr) outputmanually
RGB 4:4:4 (8 bits) digital input YCbCr 4:4:4 or 4:2:2 digitaloutput
Stereo analog or digital/optical audio output (S/PDIFformat)
HDMI, HDCP compliant
Supports 1.65Gbps signaling rate, supports high-definitionformat from 480i to 1080p
Recognize input format automatically
Two cables are included in packing
Video (VGA to 3RCA 1.5m) cable: 1 piece
Audio (mini-Toslink to Toslink) cable: 1 piece

Specifications:

Operating temperature range: -5 to 35°C (23 to95°F)
Operating humidity range: 5 to 90% RH (no condensation)
Video amplifier bandwidth: 165MHz (maximum)
Input video signal: 5Vp-p (TTL)
Output resolution: VGA/SVGA/XGA/SXGA/UGA
Output audio format: analog audio L/R and digital audio S/PDIFoutput
Power consumption: 3W (maximum)
Dimensions: (L) 72 x (W) 50 x (H) 23mm

Note: specifications are subject to change without notice, massand dimensions are approximate

Synopsis:

Product converts digital HDMI® to analog PC/RGB or HD YPbPrwith audio
Enables customer's to connect new HDMI® sources to analogPC monitors, projectors or TVs

Packing:

Quantity: 12 or 20 pieces/carton
Gift box sizes: (L) 20.5 x (W) 15 x (H) 10 or (L) 21 x (W) 15 x(H) 5.5cm
Master carton size: (L) 43 x (W) 32 x (H) 31cm
Net weight: 128g
Gross weight: 750g

2-to-1 HDMI®-VGA/YPbPr converter lets customer's watch newHDMI® source signal (from set-top box or DVD player) oncustomer's older analog TVs or monitor

Convert HDMI® input to RGBHV/YPbPr/YCbCr output withHD-15D-Sub (VGA style) jack

Two channels input can be switched easily

Users can choose RGBHV or component (YPbPr/YCbCr) outputmanually

RGB 4:4:4 (8 bits) digital input YCbCr 4:4:4 or 4:2:2 digitaloutput

Stereo analog or digital/optical audio output (S/PDIFformat)

HDMI, HDCP compliant

Supports 1.65Gbps signaling rate, supports high-definitionformat from 480i to 1080p

Recognize input format automatically

Two cables are included in packing

Video (VGA to 3RCA 1.5m) cable: 1 piece

Audio (mini-Toslink to Toslink) cable: 1 piece

Operating temperature range: -5 to 35°C (23 to95°F)
