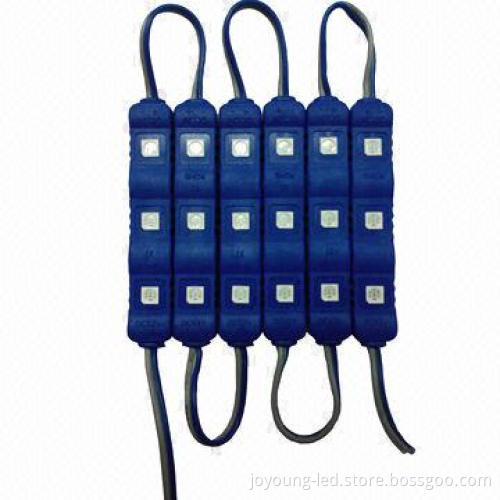

Channel letter 18-20lm 12V IP65 waterproof 5050 SMD injection LED module with 3 years warranty

Channel letter 18-20lm 12V IP65 waterproof 5050 SMD injection LED module with 3 years warranty

Get Latest Price

Payment Type:: PayPal, Western Union or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union or T/T

Product Description

Features:

Super high brightness: 5050 SMD LED water-resistant, adopts 3-chip SMD LED as luminous body with high intensity can emit higher brightness at lower cost, larger chip in LED
No spot
No shadow
Five colors are available: red, yellow, blue, green and white
12V DC, safe and stable and maintenance-free
Low power consumption, up to 60% more energy efficient than neon and nice heat dissipation
Long lifespan: 50,000 to 80,000 hours
Totally water-resistant with IP65 and works well under harsh conditions
Easy to install with mounting holes and 3M adhesive tape on the back for convenient mounting

Specifications:

Color: Blue LED and type 5050 SMD
LED figure: 3 pieces
Dimensions: 73 x 12.5 x 7mm
Weight: 10kg, ±5%/1000 pieces
Cover: plastic and PCB
Work temperature: -40 to 60°C
Protection grade: IP65 PCB be covered by resin
Input voltage: 12V DC/0.75W
Work mode static voltage current: 18mA
Light performance:
- Lumen: 18 to 20/≥20lm
- Beam angle: 3-chips 5050 SMD LED angle: 150 to 180°

Applications:

Commercial advertisement signs backlight
Channel letters backlight
Advertisement light box backlight and decoration

Certifications: CE and UL

RoHS Directive-compliant
