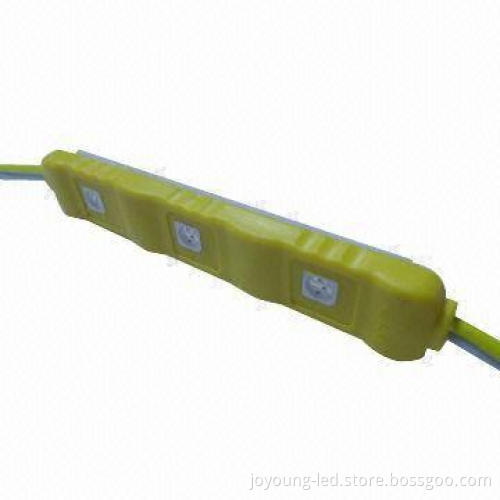

Channel Letter 18-20lm 12V IP65 Waterproof 5050SMD LED Injection Module with 3-year Warranty

Channel Letter 18-20lm 12V IP65 Waterproof 5050SMD LED Injection Module with 3-year Warranty

Get Latest Price

Payment Type:: PayPal, Western Union or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union or T/T

Product Description

Features:

Super high brightness: 5050SMD LEDs waterproof module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness at lower cost
So bigger chip in LED, no spot and no shadow
Red, yellow, blue, green and white available
DC 12V, safe and stable, maintenance-free
Low power consumption, up to 60% more energy efficient than neon and excellent heat dissipation
Long lifespan: 50,000 - 80,000 hours
Totally waterproof with IP65, work well under harsh conditions
Easy to install with mounting holes and 3M adhesive tape on the back for convenient mounting
Environment-friendly with CE, RoHs and UL certificate

Specifications:

Type: 5050SMD
LED figure: 3pcs
Dimensions: 73 x 12.5 x 7mm
Weight: 10kg±5% per 1,000pcs
Lifespan: >50,000 hours
Working temperature: -40 - +60°C
Protection grade: IP65
Voltage: DC 12V
Wattage: 0.75W
Work mode: static voltage
Current: 18mA
Light performance:
- Lumen: 18-20lm ≥20lm
- Beam angle: 3-chips 5050SMD
- LED angle: 150 - 180°

Package:

Maximum length in serial connection: ≤20pcs
20-pc a chain 200pcs/box (15box) 3,000pcs/carton

Application:

Commercial advertisement signs backlight
Channel letters backlight
Advertisement light box backlight and decoration
Ideal replacement of incandescent and fluorescent lights

Super high brightness: 5050SMD LEDs waterproof module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness at lower cost

So bigger chip in LED, no spot and no shadow

Red, yellow, blue, green and white available

DC 12V, safe and stable, maintenance-free

Low power consumption, up to 60% more energy efficient than neon and excellent heat dissipation

Long lifespan: 50,000 - 80,000 hours

Totally waterproof with IP65, work well under harsh conditions

Easy to install with mounting holes and 3M adhesive tape on the back for convenient mounting

Environment-friendly with CE, RoHs and UL certificate

Type: 5050SMD

LED figure: 3pcs

Dimensions: 73 x 12.5 x 7mm

Weight: 10kg±5% per 1,000pcs
