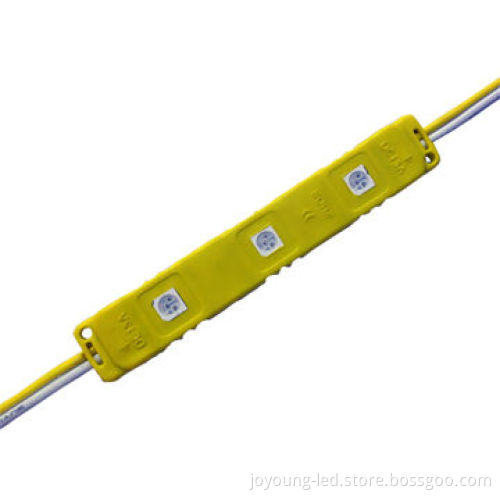

$0.27/piece Good-quality Super Brightness Injected LED Module, 5050
  • $0.27/piece Good-quality Super Brightness Injected LED Module, 5050
  • $0.27/piece Good-quality Super Brightness Injected LED Module, 5050
$0.27/piece Good-quality Super Brightness Injected LED Module, 5050
$0.27/piece Good-quality Super Brightness Injected LED Module, 5050

$0.27/piece Good-quality Super Brightness Injected LED Module, 5050

Get Latest Price
Payment Type:
PayPal, Western Union or T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: PayPal, Western Union or T/T
Product Description
Product Description
  • Features:
    • Super high brightness: 5050 SMD LED water-resistant moduleadopts 3-chip SMD LED as luminous body with high intensity and canemit higher brightness at lower cost
    • So larger chip in LED
    • No spot
    • No shadow
    • Safe and stable
    • Maintenance-free
    • Low power consumption, up to 60% more energy efficient thanneon and nice heat dissipation
    • Long life time: 50,000 to 80,000 hours
    • Totally water-resistant with IP65, work well under harshconditions
    • Easy to install with mounting holes and 3M adhesive tape onback for convenient mounting
    • Eco-friendly
  • Specification:
    • Color: yellow (red, yellow, blue, green, white (5 colors))
    • LED type: injection 5050
    • LED quantity: 3 pieces
    • Dimension: 73 x 12.5 x 7mm
    • Weight: 10kg ±5%/1,000 pieces
    • Lifespan: 50,000 hours
    • Working temperature: -40 to 60°C
    • Input voltage: 12V DC
    • Power: 0.72W
    • Working mode: static
    • Current: 18mA
    • Light performance
    • Luminous flux: 18 to 20lm (≥20lm)
    • Beam angle:
      3-chip 5050 SMD LED angle: 160 to 180°
    • Maximum length in serial connection: ≤20 pieces/chain
  • Applications:
    • Commercial advertisement signs back light
    • Channel letters back light
    • Advertisement light box back light and decoration
    • Ideal replacement of incandescent and fluorescent lights
  • Certificate: CE
  • Compliant with the RoHS Directive
  • Super high brightness: 5050 SMD LED water-resistant moduleadopts 3-chip SMD LED as luminous body with high intensity and canemit higher brightness at lower cost
  • So larger chip in LED
  • No spot
  • No shadow
  • Safe and stable
  • Maintenance-free
  • Low power consumption, up to 60% more energy efficient thanneon and nice heat dissipation
  • Long life time: 50,000 to 80,000 hours
  • Totally water-resistant with IP65, work well under harshconditions
  • Easy to install with mounting holes and 3M adhesive tape onback for convenient mounting
  • Eco-friendly
  • Color: yellow (red, yellow, blue, green, white (5 colors))
  • LED type: injection 5050
  • LED quantity: 3 pieces
  • Dimension: 73 x 12.5 x 7mm
  • Weight: 10kg ±5%/1,000 pieces
  • Lifespan: 50,000 hours
  • Working temperature: -40 to 60°C
  • Input voltage: 12V DC
  • Power: 0.72W
  • Working mode: static
  • Current: 18mA
  • Light performance
  • Luminous flux: 18 to 20lm (≥20lm)
  • Beam angle:
    3-chip 5050 SMD LED angle: 160 to 180°
  • Maximum length in serial connection: ≤20 pieces/chain
  • Commercial advertisement signs back light
  • Channel letters back light
  • Advertisement light box back light and decoration
  • Ideal replacement of incandescent and fluorescent lights
