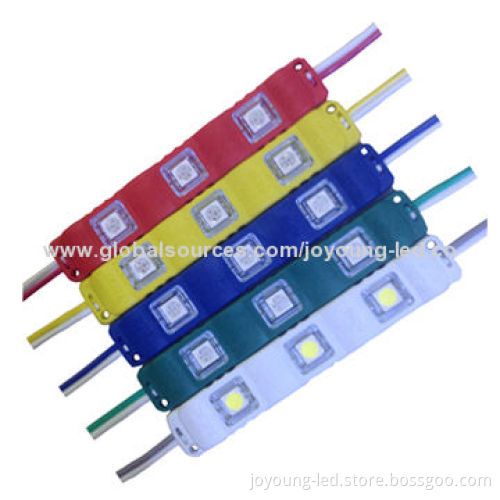

LED Water-resistant LED Injection Modules with PC Cover, Epistar LED, 0.75W, 12V Voltage IP67

LED Water-resistant LED Injection Modules with PC Cover, Epistar LED, 0.75W, 12V Voltage IP67

Get Latest Price

Payment Type:: PayPal, Western Union or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union or T/T

Product Description

Specifications:

Power: 0.75W
Input voltage: 12V DC
Colors: white, red, green, blue and yellow
LED injection module with PC cover
LED type: 5050 SMD
LED quantity: 3 pieces
Dimensions: 73 x 12.5 x 7mm
Weight: 10kg ±5%/1000 pieces
Cover: plastic and PCB
Working temperatures: -40 to 60°C
Protection grade: IP67
PCB covered by resin
Working mode static voltage current: 18mA
Light performance
Luminous flux: 18 to 20lm (≥20lm)
Beam angle: 3-chip 5050 SMD LED angle 150 to 180°

Features:

Super high brightness: 5050 SMD LEDs water-resistant module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness
Large chip in LED
No spot and shadow
Safe and stable
Maintenance-free
Low power consumption, up to 60% more energy efficient than neon and excellent heat dissipation
Long lifespan: 50,000 to 80,000 hours
Totally waterproof with IP65, works well under harsh conditions
Easy to install with mounting holes and 3m adhesive tape on back for convenient mounting
Eco-friendly
Certifications: CE and UL
RoHS Directive-compliant

Applications:

Commercial advertisement signs backlight
Channel letters backlight
Advertisement light box backlight and decoration

Power: 0.75W

Input voltage: 12V DC

Colors: white, red, green, blue and yellow

LED injection module with PC cover

LED type: 5050 SMD

LED quantity: 3 pieces

Dimensions: 73 x 12.5 x 7mm

Weight: 10kg ±5%/1000 pieces

Cover: plastic and PCB

Working temperatures: -40 to 60°C

Protection grade: IP67

PCB covered by resin

Working mode static voltage current: 18mA

Light performance

Luminous flux: 18 to 20lm (≥20lm)

Beam angle: 3-chip 5050 SMD LED angle 150 to 180°

Super high brightness: 5050 SMD LEDs water-resistant module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness

Large chip in LED

No spot and shadow

Safe and stable

Maintenance-free

Low power consumption, up to 60% more energy efficient than neon and excellent heat dissipation

Long lifespan: 50,000 to 80,000 hours

Totally waterproof with IP65, works well under harsh conditions

Easy to install with mounting holes and 3m adhesive tape on back for convenient mounting

Eco-friendly

Certifications: CE and UL

RoHS Directive-compliant

Commercial advertisement signs backlight
