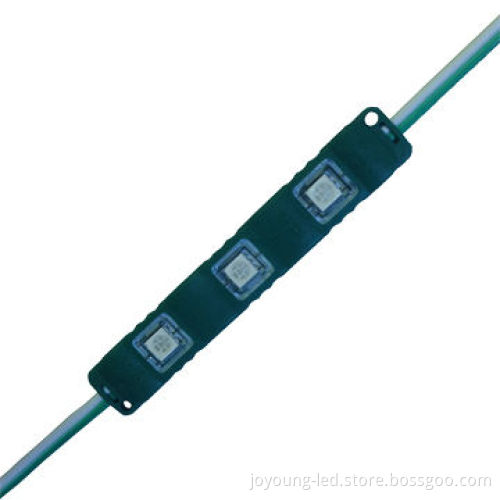

LED injection module, 0.75W/IP67 waterproof 5050, 3-year warranty

LED injection module, 0.75W/IP67 waterproof 5050, 3-year warranty

Get Latest Price

Payment Type:: PayPal, Western Union or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union or T/T

Product Description

Specifications:

Power: 0.75W
Input voltage: 12V DC
Color: green
LED type: SMD 5050
LED quantity: 3 pieces
Dimensions: 73 x 12.5 x 7mm
Weight: 10kg, ±5%/1000 pieces
Cover: plastic and PCB
Working temperatures: -40 to 60°C
Protection grade: IP67
PCB covered by resin
Working mode static voltage current: 18mA
Light performance
Luminous flux range: 18 to 20lm (≥20lm)
Beam angles:
- 3-chip 5050 SMD LED: 150 to 180°
Features:
- Super high brightness: 5050 SMD LEDs water-resistant module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness
- So larger chip in LED
- No spot and shadow
- Colors: red, yellow, blue, green and white
- Safe and stable
- Maintenance-free
- Low power consumption, up to 60% more energy efficient than neon and nice heat dissipation
- Long lifespan: 50,000 to 80,000 hours
- Totally water-resistant with IP65, works well under harsh conditions
- Easy to install with mounting holes and 3m adhesive tape on back for convenient mounting
- Eco-friendly
- Certification: CE
- RoHS Directive-compliant
Applications:
- Commercial advertisement signs backlight
- Channel letters backlight
- Advertisement light box backlight and decorations

Power: 0.75W

Input voltage: 12V DC

Color: green

LED type: SMD 5050

LED quantity: 3 pieces

Dimensions: 73 x 12.5 x 7mm

Weight: 10kg, ±5%/1000 pieces

Cover: plastic and PCB

Working temperatures: -40 to 60°C

Protection grade: IP67

PCB covered by resin

Working mode static voltage current: 18mA

Light performance

Luminous flux range: 18 to 20lm (≥20lm)

Beam angles:

3-chip 5050 SMD LED: 150 to 180°

Features:

Super high brightness: 5050 SMD LEDs water-resistant module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness
So larger chip in LED
No spot and shadow
Colors: red, yellow, blue, green and white
Safe and stable
Maintenance-free
Low power consumption, up to 60% more energy efficient than neon and nice heat dissipation
Long lifespan: 50,000 to 80,000 hours
Totally water-resistant with IP65, works well under harsh conditions
Easy to install with mounting holes and 3m adhesive tape on back for convenient mounting
Eco-friendly
Certification: CE
RoHS Directive-compliant

Applications:

Commercial advertisement signs backlight
Channel letters backlight
Advertisement light box backlight and decorations
