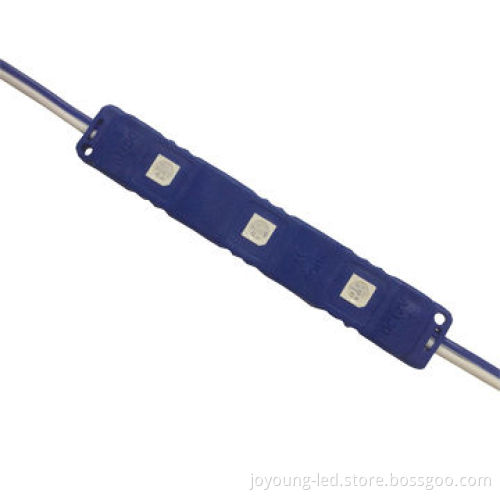

Good-quality Super Brightness Injected 5050 LED Module
  • Good-quality Super Brightness Injected 5050 LED Module
Good-quality Super Brightness Injected 5050 LED Module

Good-quality Super Brightness Injected 5050 LED Module

Get Latest Price
Payment Type:
PayPal, Western Union or T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: PayPal, Western Union or T/T
Product Description
Product Description
  • Features:
    • Super high brightness: 5050 SMD LED water-resistant module, adopts 3-chip SMD LED as luminous body with high intensity can emit higher brightness, larger chip in LED
    • No spot
    • No shadow
    • Five colors are available: red, yellow, blue, green and white
    • 12V DC, safe and stable, maintenance-free
    • Low power consumption, up to 60% more energy efficient than neon, and good heat dissipation
    • Long lifespan: 50,000 to 80,000 hours
    • Totally water-resistant with IP65, works well under harsh conditions
    • Easy to install with mounting holes and 3M adhesive tape on the back for convenient mounting
  • Specifications:
    • Color: blue
    • LED type: 5050 SMD
    • LED figure: 3 pieces
    • Dimensions: 73 x 12.5 x 7mm
    • Weight: 10kg, ±5%/1000 pieces
    • Cover: plastic and PCB
    • LED module: cable white
    • Working temperatures: -40 to 60°C
    • Protection grade IP65 PCB be covered by resin
    • Input voltage: 12V DC
    • Power: 0.75W
    • Work mode static voltage current: 18mA
    • Light performances:
      • Lumen: 18 to 20/≥20lm
      • 3-chip 5050 SMD LED beam angle: 150 to 180°
  • Applications:
    • Commercial advertisement signs backlight
    • Channel letters backlight
    • Advertisement light box backlight and decoration
  • Certification: CE
  • Compliant with RoHS Directive
  • Super high brightness: 5050 SMD LED water-resistant module, adopts 3-chip SMD LED as luminous body with high intensity can emit higher brightness, larger chip in LED
  • No spot
  • No shadow
  • Five colors are available: red, yellow, blue, green and white
  • 12V DC, safe and stable, maintenance-free
  • Low power consumption, up to 60% more energy efficient than neon, and good heat dissipation
  • Long lifespan: 50,000 to 80,000 hours
  • Totally water-resistant with IP65, works well under harsh conditions
  • Easy to install with mounting holes and 3M adhesive tape on the back for convenient mounting
  • Color: blue
  • LED type: 5050 SMD
  • LED figure: 3 pieces
  • Dimensions: 73 x 12.5 x 7mm
  • Weight: 10kg, ±5%/1000 pieces
  • Cover: plastic and PCB
  • LED module: cable white
  • Working temperatures: -40 to 60°C
  • Protection grade IP65 PCB be covered by resin
  • Input voltage: 12V DC
  • Power: 0.75W
  • Work mode static voltage current: 18mA
  • Light performances:
    • Lumen: 18 to 20/≥20lm
    • 3-chip 5050 SMD LED beam angle: 150 to 180°
  • Lumen: 18 to 20/≥20lm
  • 3-chip 5050 SMD LED beam angle: 150 to 180°
  • Commercial advertisement signs backlight
  • Channel letters backlight
  • Advertisement light box backlight and decoration
