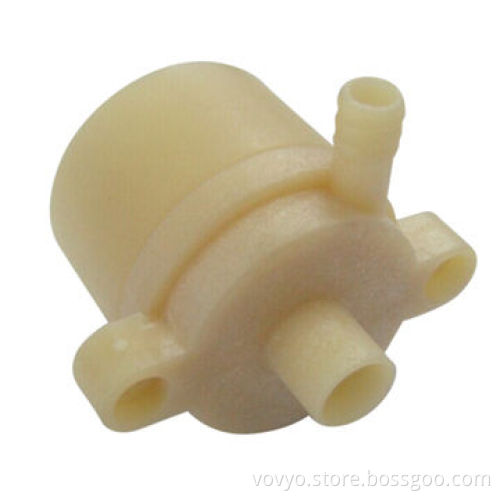

Mini 3-phase brushless DC water pump with OD 33mm, 12V DC, flow rate 3.0 L/min & water head 3M
  • Mini 3-phase brushless DC water pump with OD 33mm, 12V DC, flow rate 3.0 L/min & water head 3M
  • Mini 3-phase brushless DC water pump with OD 33mm, 12V DC, flow rate 3.0 L/min & water head 3M
  • Mini 3-phase brushless DC water pump with OD 33mm, 12V DC, flow rate 3.0 L/min & water head 3M
Mini 3-phase brushless DC water pump with OD 33mm, 12V DC, flow rate 3.0 L/min & water head 3M
Mini 3-phase brushless DC water pump with OD 33mm, 12V DC, flow rate 3.0 L/min & water head 3M
Mini 3-phase brushless DC water pump with OD 33mm, 12V DC, flow rate 3.0 L/min & water head 3M

Mini 3-phase brushless DC water pump with OD 33mm, 12V DC, flow rate 3.0 L/min & water head 3M

Get Latest Price
Payment Type:
T/T, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union
Product Description
Product Description
  • Features:
    • 3-phase brushless DC water pump with built-in controller
    • The pump w/external controller can resist hot water over 105 ℃
    • Built-in or external controllers (Optional)
    • Long life time, low noise, eco-friendly & energy-saving
    • Water flow rate can be controlled by PWM or voltage 0~5VDC
    • 4 poles three phases BLDC motor pump
    • Sustain heavy duty work for 24 hours/ day
    • Life expectancy: over 20,000 hours at normal condition
    • Lead wires: UL1007, AWG24, 200mm, red (+), black (-)
    • Application: Aquarium, fountain, small fish pond, water cooling system, thermal water cycle system,
    • Medical machine & equipment, water cooling or circulation system, and other small home appliance and so on
    • Home appliances (FDA good grade item): Juicer, coffee maker/machine, water dispenser, kettle, food processers
  • Specifications:
    • Rated voltage: 12V DC
    • Power: 4.8W
    • Current: 0.40A
    • Flow rate: 3.0 L/min
    • Water head: 3.0M
    • Water temperature: ≤60℃
    • Noise level: ≤30dBA
    • Submersible water pump
    • Pump sizes: L40.9 x W47 x H40.5mm
    • Inlet: OD 9.7mm, ID 6.1mm
    • Outlet: OD 6.8mm, ID 3.5mm
    • Unit weight: 55g
    • HS code: 854449
    • Packing in a bubble bag, standard export outer carton
  •  Notes:
    • Don’t operate for long time when there is no water inside the water pump
    • OEM designs are welcome
  • 3-phase brushless DC water pump with built-in controller
  • The pump w/external controller can resist hot water over 105 ℃
  • Built-in or external controllers (Optional)
  • Long life time, low noise, eco-friendly & energy-saving
  • Water flow rate can be controlled by PWM or voltage 0~5VDC
  • 4 poles three phases BLDC motor pump
  • Sustain heavy duty work for 24 hours/ day
  • Life expectancy: over 20,000 hours at normal condition
  • Lead wires: UL1007, AWG24, 200mm, red (+), black (-)
  • Application: Aquarium, fountain, small fish pond, water cooling system, thermal water cycle system,
  • Medical machine & equipment, water cooling or circulation system, and other small home appliance and so on
  • Home appliances (FDA good grade item): Juicer, coffee maker/machine, water dispenser, kettle, food processers
  • Rated voltage: 12V DC
  • Power: 4.8W
  • Current: 0.40A
  • Flow rate: 3.0 L/min
  • Water head: 3.0M
  • Water temperature: ≤60℃
  • Noise level: ≤30dBA
  • Submersible water pump
  • Pump sizes: L40.9 x W47 x H40.5mm
  • Inlet: OD 9.7mm, ID 6.1mm
  • Outlet: OD 6.8mm, ID 3.5mm
  • Unit weight: 55g
  • HS code: 854449
  • Packing in a bubble bag, standard export outer carton
  • Don’t operate for long time when there is no water inside the water pump
  • OEM designs are welcome
