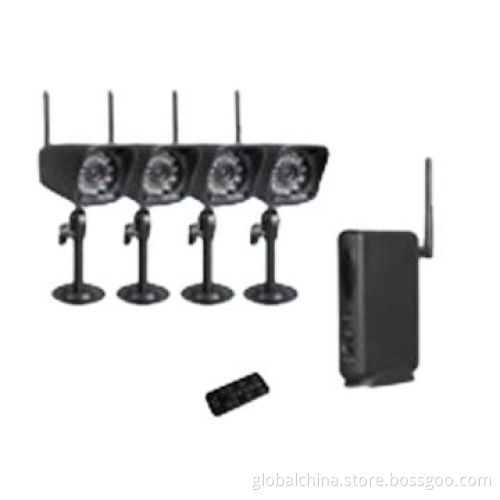

4-channel Wireless Recording Security System with 4 Pieces Plastic Cameras

4-channel Wireless Recording Security System with 4 Pieces Plastic Cameras

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Working frequency: 2400 to 2483.5MHz, 3m broadband transmission

Digital encryption technique, preventing crosstalk of similar products

Digital auto-matching and intelligent frequency hopping technique, strong anti-interference ability

MP4 video compress technique, smooth picture transmission speed

Picture transmission speed is VGA (640 x 480 pixels) at 30fps/QVGA (320 x 480 fps) at 30fps

OSD menu, imaging operating interface, easy to use

Infrared remote control, convenient operation

SD card and MMC card function

Built-in movement detection function can trigger record or alarm

Can match a single or multiple cameras, maximum 4 camera, 4 camera meanwhile picture displayed

Transmitting power: +20dBm

Receiving sensitivity: -90dB

Effective distance: 150 to 200m (outdoor)

Camera:

Image sensor: 1/4-inch color CMOS
Picture element: 640 x 480 pixels
Resolution: 420TVL (TV-out)
Lens: f=3.6mm
Frequency range: 2.400 to 2.4835GHz
Modulation: 16QAM/QPSK/BPSK
Maximum transmit power: 100mW/CE
IR wavelength: 850Nm
IR LED: 24pcs, Φ5 LED
IR night vision distance: 15m
Minimum illuminations: 0.8 lux
Weatherproof level: IP66
Electronic shutter: 1/50 to 1/100,000 seconds
Power supply: DC 5V/500mA
Dimensions: 95 x 59 x 61mm

Receiver:

Receive frequency: 2.400 to 2.4835GHz
Nominal input impedance: 50Ω
Receive sensitivity: -85dB
SD card: supports to 32GB
Video frame rate: 30fps (maximum)
Video resolution: VGA/CIF
Video format: AVI
Date output: USB 2.0
Video output: 1Vp-p/75Ω
Audio output: 1.5Vp-p/600Ω
Power supply: DC 5V/500mA
Dimensions: 203 x 142 x 21mm
Approximate weight: 328g
Operating temperatures: -10 to 55°C, 95% RH (maximum)
Operating humidity: 15 to 85% RH

Image sensor: 1/4-inch color CMOS

Picture element: 640 x 480 pixels

Resolution: 420TVL (TV-out)

Lens: f=3.6mm

Frequency range: 2.400 to 2.4835GHz

Modulation: 16QAM/QPSK/BPSK

Maximum transmit power: 100mW/CE

IR wavelength: 850Nm

IR LED: 24pcs, Φ5 LED

IR night vision distance: 15m

Minimum illuminations: 0.8 lux

Weatherproof level: IP66

Electronic shutter: 1/50 to 1/100,000 seconds

Power supply: DC 5V/500mA

Dimensions: 95 x 59 x 61mm

Receive frequency: 2.400 to 2.4835GHz

Nominal input impedance: 50Ω

Receive sensitivity: -85dB

SD card: supports to 32GB

Video frame rate: 30fps (maximum)

Video resolution: VGA/CIF

Video format: AVI

Date output: USB 2.0

Video output: 1Vp-p/75Ω

Audio output: 1.5Vp-p/600Ω

Power supply: DC 5V/500mA

Dimensions: 203 x 142 x 21mm

Approximate weight: 328g

Operating temperatures: -10 to 55°C, 95% RH (maximum)

Operating humidity: 15 to 85% RH
