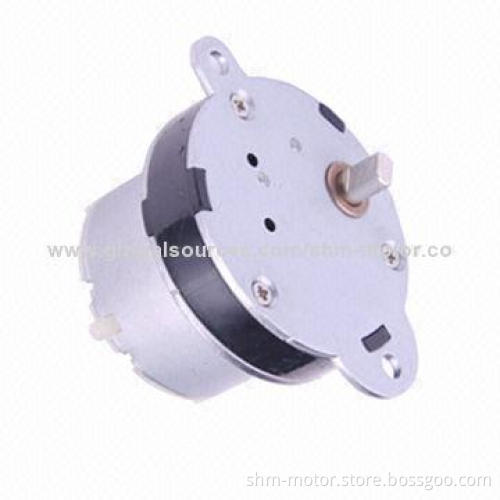

40mm 12V Geared motors, CE-certified

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Electric reduction motor

PMDC right angle gear

Length of gearbox: 12.5mm

Reduction ratio: 10, 30, 45, 60, 90, 120, 225, 300, 340, 454,900 and 1500

High torque and long life

Typical application: financial machinery, office automation, electronic products, electrical appliance, sanitary appliance, power tools, message apparatus, safe box, pumps, medical equipment and instruments

Rated voltage: 12V

No load speed: 214rpm

Current: 0.05A

At maximum efficiency:

Speed: 162.4rpm
Current: 0.284A
Torque: 1.2kg.cm
Output power: 1.99W

At stall:

Torque: 4.9kg.cm
Current:1.4A

Certifications: CE

Compliant with RoHS Directive

Speed: 162.4rpm

Current: 0.284A

Torque: 1.2kg.cm

Output power: 1.99W

Torque: 4.9kg.cm

Current:1.4A
