High brightness wonderful long lifespan colorful EL wire

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Technical parameters:

Basic specification:

With single core
Diameter: 1.3, 2.3, 3.2 or 5.0mm

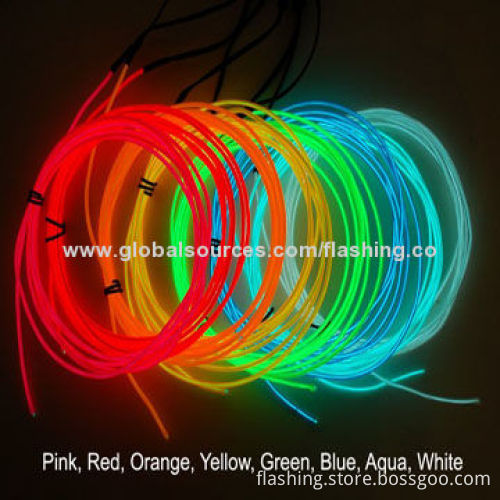

Main colors: red, lemon, aqua, orange, grass green, blue, purple, pink, gold yellow, fluorescent red and white

Notice: our factory can make it according to the customer's need diameter, but diameter need within 0.9 to 6.0mm (MOQ: 100m)

Working voltage: 50 to 120V

Optimal operating voltage: 110V

Working frequency: 800MHz to 1200Hz

Optimal frequency: 1000Hz

Static capacitance: 6.5nf/m (20°C RH<80%)

Illumination intensity: 200cd/m² (110V, 1000Hz)

Power consumption: 43mW/M (110V, 1000Hz)

Lifetime: 6000 to 7000 hours (100V, 1kHz)

Working temperature: -20 to +70°C

Relative humidity: RH<90%

Storage temperature: -10 to +40°C

Storage relative humidity: RH<65%

With single core

Diameter: 1.3, 2.3, 3.2 or 5.0mm

Main colors: red, lemon, aqua, orange, grass green, blue, purple, pink, gold yellow, fluorescent red and white
