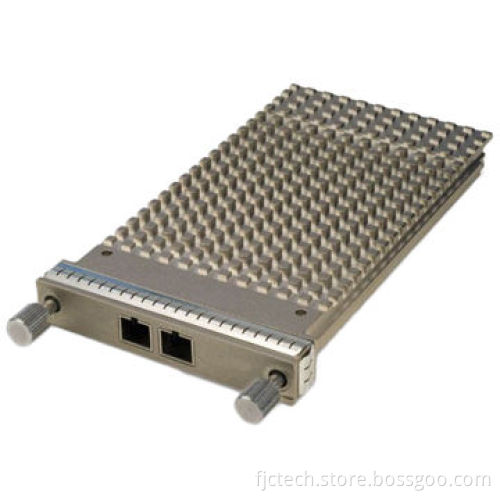

40G Multi-rate 10km CFP Optical Transceiver Module, Supports 39.8 to 44.6Gbps Aggregate Bit Rates
  • 40G Multi-rate 10km CFP Optical Transceiver Module, Supports 39.8 to 44.6Gbps Aggregate Bit Rates
40G Multi-rate 10km CFP Optical Transceiver Module, Supports 39.8 to 44.6Gbps Aggregate Bit Rates

40G Multi-rate 10km CFP Optical Transceiver Module, Supports 39.8 to 44.6Gbps Aggregate Bit Rates

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Features:
    • Hot-pluggable CFP form factor
    • Supports 39.8 to 44.6Gbps aggregate bit rates
    • Power dissipation: <6W
    • RoHS Directive-compliant
    • Commercial temperature range: -5 to 75°C
    • Single: 3.3V power supply
    • Maximum link length of 10km on single mode fiber (SMF)
    • Un-cooled 4x10Gbps CWDM transmitter 4 x 10G MLD electrical interface
    • Duplex SC receptacles
    • Built-in digital diagnostic functions
  • Applications: 40GBase-LR4 40G Ethernet OTN OTU3 C4S1-2D1OTU3e1 and OTU3e2
  • Hot-pluggable CFP form factor
  • Supports 39.8 to 44.6Gbps aggregate bit rates
  • Power dissipation: <6W
  • RoHS Directive-compliant
  • Commercial temperature range: -5 to 75°C
  • Single: 3.3V power supply
  • Maximum link length of 10km on single mode fiber (SMF)
  • Un-cooled 4x10Gbps CWDM transmitter 4 x 10G MLD electrical interface
  • Duplex SC receptacles
  • Built-in digital diagnostic functions
