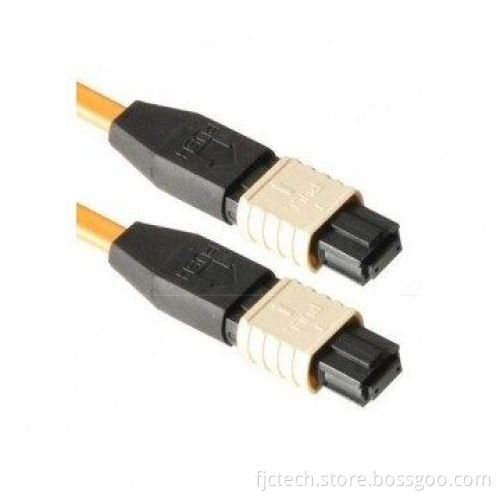

MM MPO-MPO Fiber Optic Patch Cords for Industrial, Medical and Military Use

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Features:

Single-mode and multi-mode (flat) APC (catercorner 8 degreeangled) available
High fiber density (maximum 24 fibers for multimode)
Fiber in single connector: 4, 8, 12 and 24
Insert/pull latching connector
High reflection loss with APC
Comply with Telcordia GR-1435-CORE specification
RoHS Directive-compliant

Applications:

FTTH, CATV, LAN, MAN, WAN, test and measurement
Video transmission and data transmission
Active device termination
Premise installations
Telecommunication and data processing networks
Industrial, medical and military use
Systems integration for long haul, metro and accessnetwork

Specifications:

Fiber diameter: 9/125μm
Multimode: 62.5/125 and 50/125μm
Insertion loss:
- PC: 0.5dB
- APC: 0.4dB
- Multimode:
  PC: 0.4dB
Return loss:
- Single mode:
  - PC: 45dB
  - APC: 55dB
- Multimode:
  PC: 25dB
Insert-pull test: 1000 times, 0.5dB
Interchange: 0.5dB
Operating temperatures: -40 to 80°C
Anti-tensile force: 15kgf

Single-mode and multi-mode (flat) APC (catercorner 8 degreeangled) available

High fiber density (maximum 24 fibers for multimode)

Fiber in single connector: 4, 8, 12 and 24

Insert/pull latching connector

High reflection loss with APC

Comply with Telcordia GR-1435-CORE specification

RoHS Directive-compliant

FTTH, CATV, LAN, MAN, WAN, test and measurement

Video transmission and data transmission

Active device termination

Premise installations

Telecommunication and data processing networks

Industrial, medical and military use

Systems integration for long haul, metro and accessnetwork

Fiber diameter: 9/125μm

Multimode: 62.5/125 and 50/125μm

Insertion loss:

PC: 0.5dB
APC: 0.4dB
Multimode:
PC: 0.4dB

Return loss:

Single mode:
- PC: 45dB
- APC: 55dB
Multimode:
PC: 25dB

Insert-pull test: 1000 times, 0.5dB

Interchange: 0.5dB

Operating temperatures: -40 to 80°C

Anti-tensile force: 15kgf

PC: 0.5dB

APC: 0.4dB

Multimode:
PC: 0.4dB

Single mode:

PC: 45dB
APC: 55dB

Multimode:
PC: 25dB

PC: 45dB

APC: 55dB
