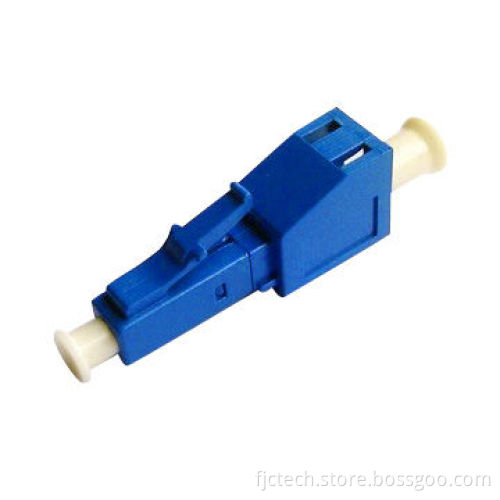

Low Back Reflection and Low PDL LC/PC Optical Attenuators

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Descriptions:

It is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver
LC/PC, LC/APC, ST/PC, MU/PC, FC/PC, FC/APC, SC/PC available
Attenuation value: 3, 5, 10, 15, 20 and 25dB available

Features:

Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC optional
Plastic or metal housing material

Applications:

Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment

Specification:

Standard attenuation values: 1-30dB
Attenuation tolerance: standard at 1-10dB (±0.5dB), 11- 20dB (±1dB), 21-30dB (±2dB)
Ruggedized connector construction
Operating temperature range: -40 to 75°C
Vibration resistance: <0.1x attenuation value
