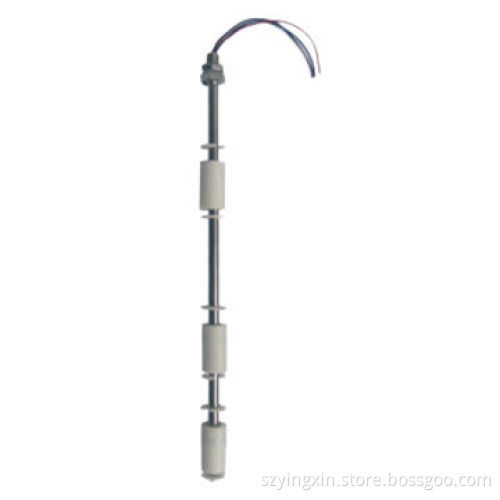

Smart Multi-Level Water Oil Level Detector(WLD-300)

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Smart multi-level water oil level detector is special for one level or more levels monitoring in the oil tank or water tank or river and other applications. When the water level or oil level in the tank higher than or lower than the related float ball, the high level or middle or low or related sensor will trigger and output an alarm signal. It is an industrial class, photoelectric isolation, high reliability, low-power consumption, high stability and high precision digital detector

Smart multi-level water oil level detector is used widely as a front-end detector of an alarm system for level monitoring in oil tank, water tank, and river level monitoring.

The wld-300 with fire retardant shell, and flange installation types makes it easy to install in fields.

Specifications:

The specification of the level sensor is in the table. (We can supply the other size according to the customer’s special requirements. But should tell us the total length, how many float ball, distance between the nearby two float ball, and liquid materials)
Model: WLD-300
Main body material: steel material 304
Floating ball material: PP
Contact: dry contact, OKI30-35 10W or HAMLIN25-30
Connection wire: UL1007 24AWG
Work temperature: -20~+80
Application: water (if use for oil, the floating ball material should be NBR material)
Wiring specification: white color wire: low level
Blue color wire: middle level
Red color wire: high level
Black color wire: com
Output type: dry contact, default: NC(Alarm will open), optional: NO
Level quantity: L-M-H 3Levels
Total length: 30CM
Rated voltage: 12VDC
Installation type: flange
Package: 1.00KG

The specification of the level sensor is in the table. (We can supply the other size according to the customer’s special requirements. But should tell us the total length, how many float ball, distance between the nearby two float ball, and liquid materials)

Model: WLD-300

Main body material: steel material 304

Floating ball material: PP

Contact: dry contact, OKI30-35 10W or HAMLIN25-30

Connection wire: UL1007 24AWG

Work temperature: -20~+80

Application: water (if use for oil, the floating ball material should be NBR material)

Wiring specification: white color wire: low level

Blue color wire: middle level

Red color wire: high level

Black color wire: com

Output type: dry contact, default: NC(Alarm will open), optional: NO
