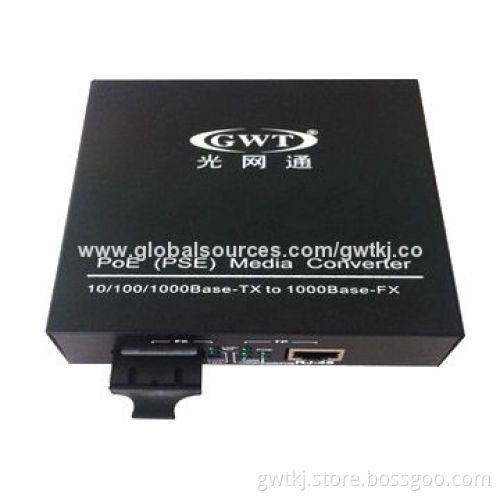

10/100/1000M PoE PSE Media Converter, SC MM 550m, 850nm

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

GWTP1111 series is a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily

Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100 meters /330 feet)

The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features

Other features include over-current protection, LFP function and more

The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal

In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault

10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion

IEEE802.3at / IEEE802.3af PoE PSE compatible

Built-in AC/DC power supply

Over-current protection

Choice of SC, LC, BiDi or other connectors for multimode and single mode

DIP switch to set different configurations

LFP (Link Fault Pass-through) support
