Managed industrial Ethernet switch, IP40 protection, EMC industrial standard, 5 years warranty

Managed industrial Ethernet switch, IP40 protection, EMC industrial standard, 5 years warranty

Get Latest Price

Payment Type:: T/T, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Powerful web management function

4100M optical port effectively establish 2100M self-healing redundant ring network

Proprietary protocol “GWT-Ring” (self-recovery time <15ms) and RSTP/STP/MSTP for network redundancy

SNMPv3, IEEE802.1X, HTTPS and SSH to enhance network security

Web, CLI, Telnet/serial console, Windows utility, and SNMP management

Complies with standard industrial design:-40℃~85℃ operating temperature and redundant power input (18~36V DC)

Protection level: IP40, aluminum chassis, cooling surface design

Overview:

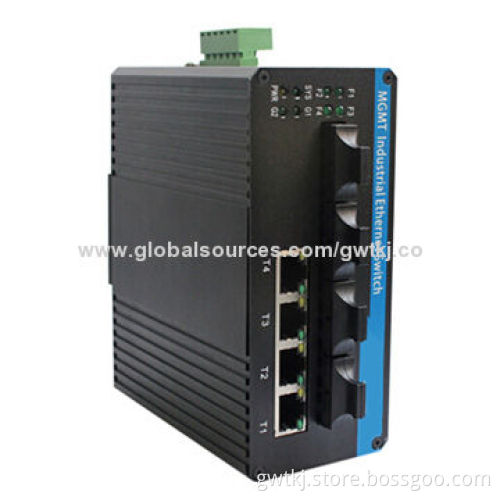

GWTIESM0404 series managed industrial Ethernet switches are equipped with 4 100 optical ports (SC/ST/FC/LC optional) and 4 10/100M Ethernet RJ45 ports, which supports the “GWT-ring”
Redundant ring (self-recovery time<15ms), RSTP/STP/MSTP protocol to enhance the reliability of the network
Superb hardware reliability is especially suitable for industrial applications

Features:

Command line interface (CLI) for quickly configuration major managed functions
Supports IEEE1588 PTP V2 to realize the synchronization of precise network time
Port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol to ease network planning
Port mirroring for online debugging
IGMP Snooping and GMRP for filtering multicast traffic
Ethernet/IP and Modbus/TCP protocols for device management and monitoring
Multicast and broadcast storm control
Port Trunking for optimum bandwidth utilization
QoS and ToS/DiffServ for flow control and management
Lock port function for blocking unauthorized access based on MAC address
Automatic alarm through e-mail, relay output

GWTIESM0404 series managed industrial Ethernet switches are equipped with 4 100 optical ports (SC/ST/FC/LC optional) and 4 10/100M Ethernet RJ45 ports, which supports the “GWT-ring”

Redundant ring (self-recovery time<15ms), RSTP/STP/MSTP protocol to enhance the reliability of the network

Superb hardware reliability is especially suitable for industrial applications

Command line interface (CLI) for quickly configuration major managed functions

Supports IEEE1588 PTP V2 to realize the synchronization of precise network time

Port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol to ease network planning

Port mirroring for online debugging

IGMP Snooping and GMRP for filtering multicast traffic

Ethernet/IP and Modbus/TCP protocols for device management and monitoring

Multicast and broadcast storm control

Port Trunking for optimum bandwidth utilization

QoS and ToS/DiffServ for flow control and management

Lock port function for blocking unauthorized access based on MAC address
