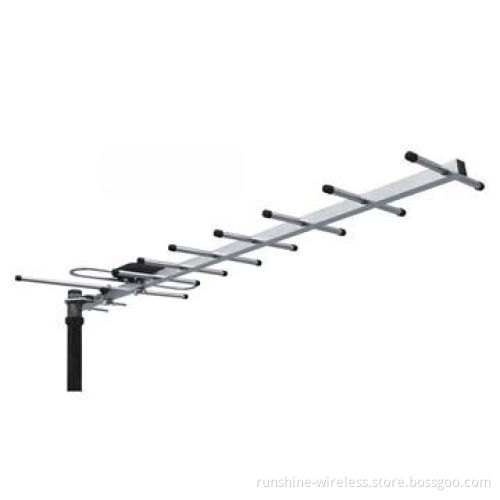

450 to 862MHz High-gain UHF Outdoor Directional Yagi /Terminal TV Receiving Antenna with 9 Elements

Get Latest Price

Payment Type:: T/T, Western Union, PayPal, MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal, MoneyGram

Product Description

Features:

High gain
Aluminum-alloy frame
Full day for working
Optimized dimensions
Optional installation: H or V

Applications:

TV repeater station system
Terminal TV receiving antenna
Village to village project

Electric specifications:

Frequency range: 450 to 862MHz
Bandwidth: 200MHz
Gain: 12dBi
Element: 9
Beam width:
- H: 48°
- V: 42°
F/B ratio: ≥16dB
VSWR: ≤1.5
Input impedance: 75Ω
Polarization: horizontal or vertical
Maximum power: 100W
Lightning protection: DC ground
Connector model: F female or others

Mechanical specifications:

Dimensions: 790x 345 x 50mm
Cable length: 0.3m
Antenna weight: 0.52kg
Working temperatures: -40 to 60°C
Rated wind velocity: 60m/s
Clamp: U
Pole diameter range: Ø40 to 50mm

High gain

Aluminum-alloy frame

Full day for working

Optimized dimensions

Optional installation: H or V

TV repeater station system

Terminal TV receiving antenna

Village to village project

Frequency range: 450 to 862MHz

Bandwidth: 200MHz

Gain: 12dBi

Element: 9

Beam width:

H: 48°
V: 42°

F/B ratio: ≥16dB

VSWR: ≤1.5

Input impedance: 75Ω

Polarization: horizontal or vertical

Maximum power: 100W

Lightning protection: DC ground

Connector model: F female or others

H: 48°

V: 42°

Dimensions: 790x 345 x 50mm

Cable length: 0.3m

Antenna weight: 0.52kg

Working temperatures: -40 to 60°C

Rated wind velocity: 60m/s

Clamp: U

Pole diameter range: Ø40 to 50mm
