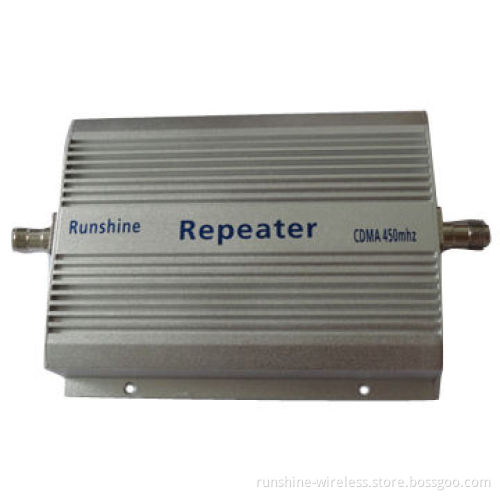

450 to 470MHz CDMA Cellphone Signal Repeater Amplifier Booster with ALC and AGC Function
  • 450 to 470MHz CDMA Cellphone Signal Repeater Amplifier Booster with ALC and AGC Function
  • 450 to 470MHz CDMA Cellphone Signal Repeater Amplifier Booster with ALC and AGC Function
450 to 470MHz CDMA Cellphone Signal Repeater Amplifier Booster with ALC and AGC Function
450 to 470MHz CDMA Cellphone Signal Repeater Amplifier Booster with ALC and AGC Function

450 to 470MHz CDMA Cellphone Signal Repeater Amplifier Booster with ALC and AGC Function

Get Latest Price
Payment Type:
T/T in Advance, Western Union, PayPal, MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, Western Union, PayPal, MoneyGram
Product Description
Product Description
  • Functions:
    • Making your mobile phone signal stronger
    • Making you keep in touch with others smoothly in everywhere
    • Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal
    • Features:
    • ALC ensure output level stable and adjustable continuously
    • Low power consumption and avoid to interference to BTS
    • LED indicate and judge to signal level of uplink and downlink
    • AGC and MAC functions
    • Customized band selective
    • With the amplified linear power, the inter modulation and spuriousness are suppressed effectively
    • Compact design, to easy and convenient installation
  • Spec:
    • Parameter data Uplink Downlink
    • Frequency range 452.5～457.5 462.5～467.5MHz
    • Output power  （ALC） 10±1dBm 20 ±2dBm
    • Gain 60±2 65±2dB
    • Bandwidth 5M
    • ALC 31
    • Ripple in band ≤5dB
    • Intermodulation products 9KHz~1GHz ≤ -36 dBm
    •  1GHz~12.75GHz ≤ -30 dBm
    • Noise figure @ max. gain ≤ 6 dB
    • VSWR ≤2
    • MTBF ＞50000 hours
    • Power supply AC110V～220V   DC+5V/2A
    • Impedance 50 ohm
    • Mechanical specification
    • RF connector TNC-Female
    • Cooling  heat sink convection cooling
    • Dimensions (D x W xH ) 155*105*27（mm）
    • Weight 0.5KG
    • Installation type wall installation
    • Environment conditions  IP40
    • Humidity <  90%
    • Operating temperature  -10℃ ~ 55℃
  • Applications:
    • Designed to solve the mobile phone weak signal
    • Underground parking areas, underground markets
    • Department stores, home, offices, commercial centers
    • Stadiums, schools, hospitals, hotels, subway stations and more
  • Making your mobile phone signal stronger
  • Making you keep in touch with others smoothly in everywhere
  • Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal
  • Features:
  • ALC ensure output level stable and adjustable continuously
  • Low power consumption and avoid to interference to BTS
  • LED indicate and judge to signal level of uplink and downlink
  • AGC and MAC functions
  • Customized band selective
  • With the amplified linear power, the inter modulation and spuriousness are suppressed effectively
  • Compact design, to easy and convenient installation
  • Parameter data Uplink Downlink
  • Frequency range 452.5～457.5 462.5～467.5MHz
  • Output power  （ALC） 10±1dBm 20 ±2dBm
  • Gain 60±2 65±2dB
  • Bandwidth 5M
  • ALC 31
  • Ripple in band ≤5dB
  • Intermodulation products 9KHz~1GHz ≤ -36 dBm
  •  1GHz~12.75GHz ≤ -30 dBm
  • Noise figure @ max. gain ≤ 6 dB
  • VSWR ≤2
  • MTBF ＞50000 hours
  • Power supply AC110V～220V   DC+5V/2A
  • Impedance 50 ohm
  • Mechanical specification
  • RF connector TNC-Female
  • Cooling  heat sink convection cooling
  • Dimensions (D x W xH ) 155*105*27（mm）
  • Weight 0.5KG
  • Installation type wall installation
  • Environment conditions  IP40
  • Humidity <  90%
  • Operating temperature  -10℃ ~ 55℃
  • Designed to solve the mobile phone weak signal
  • Underground parking areas, underground markets
  • Department stores, home, offices, commercial centers
  • Stadiums, schools, hospitals, hotels, subway stations and more
