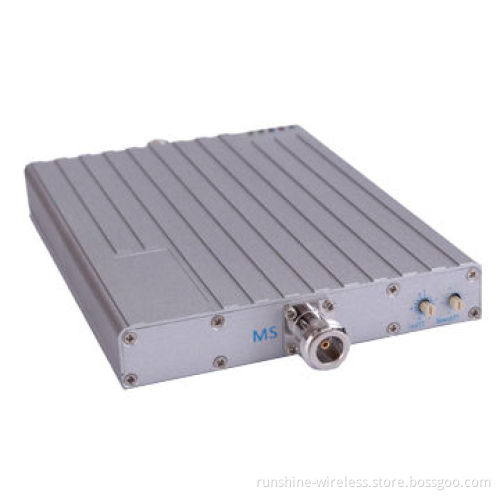

4G LTE 2600MHZ Mobile Signal Repeater Amplifier Booster with ALC and AGC Function
  • 4G LTE 2600MHZ Mobile Signal Repeater Amplifier Booster with ALC and AGC Function
  • 4G LTE 2600MHZ Mobile Signal Repeater Amplifier Booster with ALC and AGC Function
  • 4G LTE 2600MHZ Mobile Signal Repeater Amplifier Booster with ALC and AGC Function
4G LTE 2600MHZ Mobile Signal Repeater Amplifier Booster with ALC and AGC Function
4G LTE 2600MHZ Mobile Signal Repeater Amplifier Booster with ALC and AGC Function
4G LTE 2600MHZ Mobile Signal Repeater Amplifier Booster with ALC and AGC Function

4G LTE 2600MHZ Mobile Signal Repeater Amplifier Booster with ALC and AGC Function

Get Latest Price
Payment Type:
T/T in Advance, Western Union, PayPal, MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, Western Union, PayPal, MoneyGram
Product Description
Product Description
  • Functions:
    • Making your mobile phone signal stronger
    • Making you keep in touch with others smoothly in everywhere
    • Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal
  • Features:
    • ALC ensure output level stable and adjustable continuously
    • Low power consumption and avoid to interference to BTS
    • LED indicate and judge to signal level of uplink and downlink
    • AGC and MAC functions
    • Customized band selective
    • With the amplified linear power, the inter modulation and spuriousness are suppressed effectively
    • Compact design, to easy and convenient installation
  • Spec:
    • Model No RSFD-3G-L20
    • Parameter data: Uplink  downlink
    • Frequency range 1920-1980, 2110-2170MHz
    • Output power: 13±1dBm: 20 ±1dBm
    • Gain:  65±270±2dB
    • Bandwidth: 5M
    • AGC: 20db
    • Ripple in band: ≤5dB
    • Intermodulation products: 9KHz-1GHz ≤ -36dBm
    • 1GHz-12.75GHz ≤ -30dBm
    • Noise figure @ max. gain: ≤ 6dB
    • VSWR: ≤2
    • MTBF: ＞50000 hours
    • Power supply AC: 110V-220V DC+5V/2A
    • Impedance: 50ohm
  • Specifications:
    • RF connector: TNC-Female
    • Cooling: Heat sink convection cooling
    • Dimensions (D x W x H ): 200 x 110 x 25（mm）
    • Weight: 1KG
    • Installation type: Wall Installation
    • Environment conditions: IP40
    • Humidity: <  90%
    • Operating temperatures: -10℃-55℃
  • Applications:
    • Designed to solve the mobile phone weak signal
    • Underground parking areas, underground markets
    • Department stores, home, offices, commercial centers
    • Stadiums, schools, hospitals, hotels, subway stations and more
  • Making your mobile phone signal stronger
  • Making you keep in touch with others smoothly in everywhere
  • Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal
  • ALC ensure output level stable and adjustable continuously
  • Low power consumption and avoid to interference to BTS
  • LED indicate and judge to signal level of uplink and downlink
  • AGC and MAC functions
  • Customized band selective
  • With the amplified linear power, the inter modulation and spuriousness are suppressed effectively
  • Compact design, to easy and convenient installation
  • Model No RSFD-3G-L20
  • Parameter data: Uplink  downlink
  • Frequency range 1920-1980, 2110-2170MHz
  • Output power: 13±1dBm: 20 ±1dBm
  • Gain:  65±270±2dB
  • Bandwidth: 5M
  • AGC: 20db
  • Ripple in band: ≤5dB
  • Intermodulation products: 9KHz-1GHz ≤ -36dBm
  • 1GHz-12.75GHz ≤ -30dBm
  • Noise figure @ max. gain: ≤ 6dB
  • VSWR: ≤2
  • MTBF: ＞50000 hours
  • Power supply AC: 110V-220V DC+5V/2A
  • Impedance: 50ohm
  • RF connector: TNC-Female
  • Cooling: Heat sink convection cooling
  • Dimensions (D x W x H ): 200 x 110 x 25（mm）
  • Weight: 1KG
  • Installation type: Wall Installation
  • Environment conditions: IP40
  • Humidity: <  90%
  • Operating temperatures: -10℃-55℃
  • Designed to solve the mobile phone weak signal
  • Underground parking areas, underground markets
  • Department stores, home, offices, commercial centers
  • Stadiums, schools, hospitals, hotels, subway stations and more
