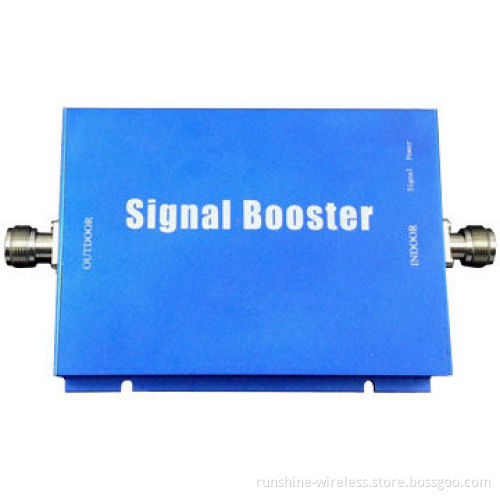

CDMA PCS 1900MHZ Cellphone Signal Repeater Amplifier Booster with 800sq.m Coverage

CDMA PCS 1900MHZ Cellphone Signal Repeater Amplifier Booster with 800sq.m Coverage

Get Latest Price

Payment Type:: T/T in Advance, Western Union, PayPal, MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union, PayPal, MoneyGram

Product Description

Functions:

Making your mobile phone signal stronger
Making you keep in touch with others smoothly in everywhere
Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal

Features:

ALC ensure output level stable and adjustable continuously
Low power consumption and avoid to interference to BTS
LED indicate and judge to signal level of uplink and downlink
AGC and MAC functions
Customized band selective
With the amplified linear power, the inter modulation and spuriousness are suppressed effectively
Compact design, to easy and convenient installation

Spec:

Model No RSFD-PCS-O17

Parameter data:

Uplink
Downlink

Frequency range:

1850-1910
1930-1990MHz

Output power:

13±1dBm
17 ±1dBm

Gain:

60±2
65±2dB

Bandwidth: 5m

AGC: 20db

Ripple in Band ≤5dB

Intermodulation products:

9KHz-1GHz ≤-36dBm
1GHz~12.75GHz ≤ -30dBm

Noise figure @ max. gain: ≤ 6dB

VSWR: ≤2

MTBF: ＞50,000 hours

Power supply AC:110V-220V DC+5V/2A

Impedance: 50ohm

Specifications:

RF Connector TNC-Female

Cooling: Heat sink convection cooling

Dimensions (D x W x H ): 100 x 85 x 20（mm）

Weight: 0.8KG

Installation type: Wall installation

Environment conditions: IP40

Humidity: < 90%

Operating temperature: -10℃-55℃

Applications:

Designed to solve the mobile phone weak signal
Underground parking areas, underground markets
Department stores, home, offices, commercial centers
Stadiums, schools, hospitals, hotels, subway stations and more

Making your mobile phone signal stronger

Making you keep in touch with others smoothly in everywhere

Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal

ALC ensure output level stable and adjustable continuously

Low power consumption and avoid to interference to BTS

LED indicate and judge to signal level of uplink and downlink

AGC and MAC functions

Customized band selective

With the amplified linear power, the inter modulation and spuriousness are suppressed effectively

Compact design, to easy and convenient installation

Uplink

Downlink

1850-1910

1930-1990MHz

13±1dBm

17 ±1dBm

60±2

65±2dB

9KHz-1GHz ≤-36dBm

1GHz~12.75GHz ≤ -30dBm

Designed to solve the mobile phone weak signal

Underground parking areas, underground markets

Department stores, home, offices, commercial centers

Stadiums, schools, hospitals, hotels, subway stations and more
