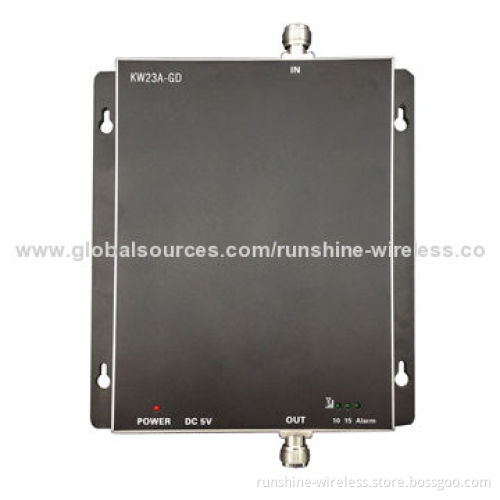

GSM 3G/WCDMA 900 2100MHz Dual Band Mobile Signal Repeater with 1,500sq.m Coverage
  • GSM 3G/WCDMA 900 2100MHz Dual Band Mobile Signal Repeater with 1,500sq.m Coverage
GSM 3G/WCDMA 900 2100MHz Dual Band Mobile Signal Repeater with 1,500sq.m Coverage

GSM 3G/WCDMA 900 2100MHz Dual Band Mobile Signal Repeater with 1,500sq.m Coverage

Get Latest Price
Payment Type:
T/T in Advance, Western Union, PayPal, MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, Western Union, PayPal, MoneyGram
Product Description
Product Description
  • Functions:
    • Making your mobile phone signal stronger
    • Making you keep in touch with others smoothly in everywhere
    • Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal
  • Features:
    • ALC ensure output level stable and adjustable continuously
    • Low power consumption and avoid to interference to BTS
    • LED indicate and judge to signal level of uplink and downlink
    • AGC and MAC functions
    • Customized band selective
    • With the amplified linear power, the inter modulation and spuriousness are suppressed effectively
    • Compact design, to easy and convenient installation
  • Specifications:
    • Parameter data: Uplink & downlink
    • Frequency range: 890~915/1920~1980, 930~960/2110~2170MHz
    • Output power: 15±1dBm, 23 ±1dBm
    • Gain: 65±2/70±2dB
    • Bandwidth: 5M
    • AGC: 20db
    • Ripple in band: ≤5dB
    • Intermodulation products:
      • 9KHz~1GHz ≤ -36dBm
      • 1GHz~12.75GHz ≤ -30dBm
    • Noise figure @ max. gain: ≤ 6dB
    • VSWR: ≤2
    • MTBF: ＞50,000 hours
    • Power supply range: AC 110V～220V, DC+5V/2A
    • Impedance: 50 ohm
  • Mechanical specifications:
    • RF connector: TNC-female
    • Cooling: Heatsink convection cooling
    • Dimensions (D x W xH ): 195*175*23mm
    • Weight: 1.5kg
    • Installation type: Wall installation
    • Environment conditions: iP40
    • Humidity: <90%
    • Operating temperatures: -10 ~ 55℃
  • Applications:
    • Designed to solve the mobile phone weak signal
    • Underground parking areas, underground markets
    • Department stores, home, offices, commercial centers
    • Stadiums, schools, hospitals, hotels, subway stations and more
  • Making your mobile phone signal stronger
  • Making you keep in touch with others smoothly in everywhere
  • Cellphone signal amplifier repeater booster designed to solve the mobile phone weak signal
  • ALC ensure output level stable and adjustable continuously
  • Low power consumption and avoid to interference to BTS
  • LED indicate and judge to signal level of uplink and downlink
  • AGC and MAC functions
  • Customized band selective
  • With the amplified linear power, the inter modulation and spuriousness are suppressed effectively
  • Compact design, to easy and convenient installation
  • Parameter data: Uplink & downlink
  • Frequency range: 890~915/1920~1980, 930~960/2110~2170MHz
  • Output power: 15±1dBm, 23 ±1dBm
  • Gain: 65±2/70±2dB
  • Bandwidth: 5M
  • AGC: 20db
  • Ripple in band: ≤5dB
  • Intermodulation products:
    • 9KHz~1GHz ≤ -36dBm
    • 1GHz~12.75GHz ≤ -30dBm
  • Noise figure @ max. gain: ≤ 6dB
  • VSWR: ≤2
  • MTBF: ＞50,000 hours
  • Power supply range: AC 110V～220V, DC+5V/2A
  • Impedance: 50 ohm
  • 9KHz~1GHz ≤ -36dBm
  • 1GHz~12.75GHz ≤ -30dBm
  • RF connector: TNC-female
  • Cooling: Heatsink convection cooling
  • Dimensions (D x W xH ): 195*175*23mm
  • Weight: 1.5kg
  • Installation type: Wall installation
  • Environment conditions: iP40
  • Humidity: <90%
  • Operating temperatures: -10 ~ 55℃
  • Designed to solve the mobile phone weak signal
  • Underground parking areas, underground markets
  • Department stores, home, offices, commercial centers
  • Stadiums, schools, hospitals, hotels, subway stations and more
