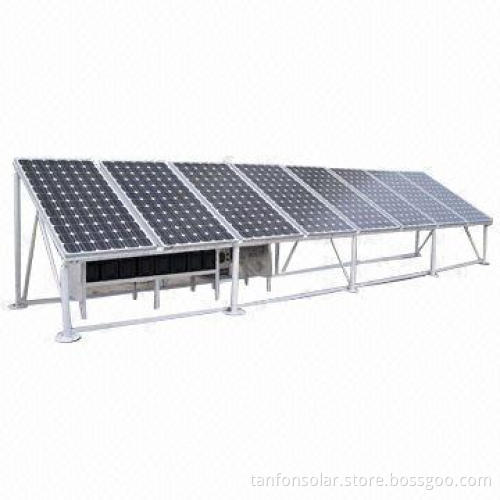

Solar panel system with 5000W power

Get Latest Price

Payment Type:: T/T, L/C, Western Union or Cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or Cash

Product Description

Specifications:

Output power: 300 to 50,000W
Home and commercial use
Monocrystal silicon be used
Complete solar system including mono-crystalline solar panels, hybrid inverter and charger controller, battery, solar panel shelf and cables with accessories
Guatantee time:
- Whole system: 2 years
- Solar panel: 10 years
- Battery: 1 year
- Controller and inverter: 3 years
Both off-grid and on-grid system available
Customized designs are accepted
6kW solar power system

Features:

Solar panel * 8 pieces:
- Type: mono solar panel (poly optional)
- Maximum power: 200W
- Vmp: 28.8V
- Voc: 36.4V
- Imp: 8.3A
- Weight: 20kg
- Size: 1610*670*35mm
- Lifetime: 25 years
- Certifications: CE and TUV
- Connecting way: 2 pieces panels in series as string and 4 strings in parallel
PV array combiner:
- Model: H6T-96v
- Multiple PV strings inputs
- Simplify wiring between PV array and controller
- Protections to controller
- Wide range of DC input voltage
- Reliable thunderstorm and surge protection
Hybrid solar inverter:
- Power: 2kW/48V
- MPPT controller model: 48V/40A
- Charging efficiency: 90-95%
- LCD display inverter and controller info
- With AC charger built-in
- Output: 110, 120, 220, 230 and 240V (optional)
- Size: 470*230*490mm
- Weight: 30.6kg
Battery:
- Capacity: 12V/200Ah full sealed
- Solar power lead-acid battery
- Service life: 5-6 years
- Size: 522*238*218mm
- Weight: 58kg
- Connecting way: 8 pieces panels in series as string, 2 strings in parallel
Solar racking:
- Ground rack installation
- Includes complete fittings (other type of rack can be customized as per client's requirement)
Cable:
- 6mm² cable (one red and one black):
- International standard, with specification suitable for solar system

Output power: 300 to 50,000W

Home and commercial use

Monocrystal silicon be used

Complete solar system including mono-crystalline solar panels, hybrid inverter and charger controller, battery, solar panel shelf and cables with accessories

Guatantee time:

Whole system: 2 years
Solar panel: 10 years
Battery: 1 year
Controller and inverter: 3 years

Both off-grid and on-grid system available

Customized designs are accepted

6kW solar power system

Whole system: 2 years

Solar panel: 10 years

Battery: 1 year

Controller and inverter: 3 years

Solar panel * 8 pieces:

Type: mono solar panel (poly optional)
Maximum power: 200W
Vmp: 28.8V
Voc: 36.4V
Imp: 8.3A
Weight: 20kg
Size: 1610*670*35mm
Lifetime: 25 years
Certifications: CE and TUV
Connecting way: 2 pieces panels in series as string and 4 strings in parallel

PV array combiner:

Model: H6T-96v
Multiple PV strings inputs
Simplify wiring between PV array and controller
Protections to controller
Wide range of DC input voltage
Reliable thunderstorm and surge protection

Hybrid solar inverter:

Power: 2kW/48V
MPPT controller model: 48V/40A
Charging efficiency: 90-95%
LCD display inverter and controller info
With AC charger built-in
Output: 110, 120, 220, 230 and 240V (optional)
Size: 470*230*490mm
Weight: 30.6kg

Battery:

Capacity: 12V/200Ah full sealed
Solar power lead-acid battery
Service life: 5-6 years
Size: 522*238*218mm
Weight: 58kg
Connecting way: 8 pieces panels in series as string, 2 strings in parallel

Solar racking:

Ground rack installation
Includes complete fittings (other type of rack can be customized as per client's requirement)

Cable:

6mm² cable (one red and one black):
International standard, with specification suitable for solar system

Type: mono solar panel (poly optional)

Maximum power: 200W

Vmp: 28.8V

Voc: 36.4V

Imp: 8.3A

Weight: 20kg

Size: 1610*670*35mm

Lifetime: 25 years

Certifications: CE and TUV

Connecting way: 2 pieces panels in series as string and 4 strings in parallel

Model: H6T-96v

Multiple PV strings inputs

Simplify wiring between PV array and controller

Protections to controller

Wide range of DC input voltage

Reliable thunderstorm and surge protection

Power: 2kW/48V

MPPT controller model: 48V/40A

Charging efficiency: 90-95%

LCD display inverter and controller info

With AC charger built-in

Output: 110, 120, 220, 230 and 240V (optional)

Size: 470*230*490mm

Weight: 30.6kg

Capacity: 12V/200Ah full sealed

Solar power lead-acid battery

Service life: 5-6 years

Size: 522*238*218mm

Weight: 58kg

Connecting way: 8 pieces panels in series as string, 2 strings in parallel

Ground rack installation

Includes complete fittings (other type of rack can be customized as per client's requirement)

6mm² cable (one red and one black):

International standard, with specification suitable for solar system
