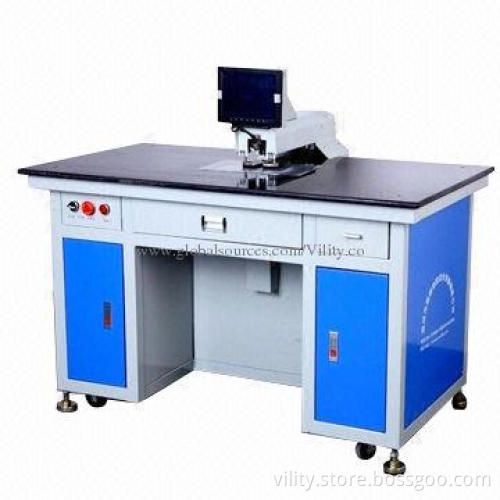

PCB equipment round hole punching machine, 8 inches LED touch screen
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
Product Description
Product Description
- 8 inches LED touch screen
- Windows XP operational system
- CCD camera performs WYSIWYG (what you say is what you get)
- Large and wide operational stage enables the object to be moved and rotated easily
- High speed: super high punching speed enables the process of hole-recognizing and target-punching to be within one second
- Users can choose different tooling size to punch different diameter and thickness material
- In order to ensure long lifetime, the major components are imported oversea, such as relief valve, cylinder, solenoid valve and rail
- Precision: ±0.015mm (VT015 and VTZ15) and ±0.008mm (VT008 and VTZ08)
- Speed: 0.5 second/hole
- Maximum momentum: 2000N (VT015 and VT008) and 6000N (VT015 and VT008)
- Thicknesses: 0.01 to 3mm (depend on material)
- Punching diameter: Φ1 to 5mm (OEM welcome)
- Pressure requirements: 0.4 to 0.8MPa
- Power requirements: 220 ±15V AC/50Hz
- Light source: infrared transmission and reflection infrared
- Weight: 198 ±2kg
- Size: 1250 x 770 x (770 + 260mm)
