ATM Card Reader for ATM and Payment Terminals, Read and Write Magnetic, RF, IC Cards

ATM Card Reader for ATM and Payment Terminals, Read and Write Magnetic, RF, IC Cards

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

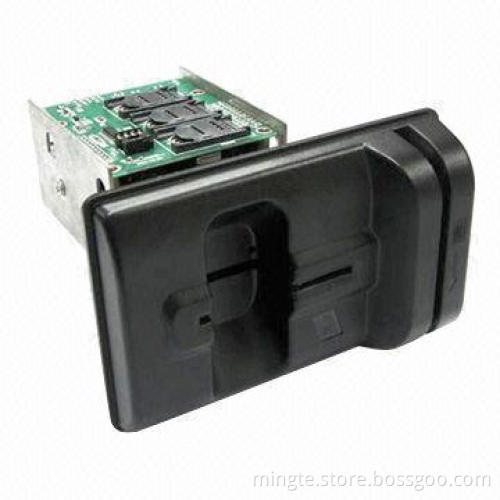

Overview:

Designed with a lot of integrated circuits in a reliable structure, supports to read magnetic cards, read and write IC cards and RFID cards, and it is dust-proof, with the function of automatic card lock and card eject
The circuit interface is flexible that can be designed base on customers' requirement
Safe, reliable, and can be widely used in the terminal equipment of petroleum, petrochemical, telecommunications, finance, transportation and other industrial fields
In the card eject circuit aspect, we designed a booster tank circuit, proposed to amplify the low-power signal comes from the circuit-board which the customers' supply when the electric current limited, then stored into the capacitor, release when eject card, to avoid it share the circuit-board power when the electromagnet working
The input power is attached with a π-type filter circuit, to make sure the power supply voltage stable

Features:

Supports IC card reading and writing, supports 3 PSAM card and 1 ESAM card to working
Supports RFID card reading and writing (at the frequency of 13.56M)
Supports magnetic card reader (magnetic track 2, 3)
Automatic card lock
Anti-clogging and dust-proof
Main material is made of PC + 20% G, assembled with resistant metal column, make sure the product anti-destructive and good insulation
Designed with a drop-down contact point structure, the contact pin is made of beryllium bronze which covered with gold, rust-proofed, contact resistance <100mΩ, won’t fatigue and deform even work for 0.5 million times
Use patented technology in the card lock and card eject structure, make sure the working lifespan reached 500,000 times
Good leak-proof ability of the card pedestal

Designed with a lot of integrated circuits in a reliable structure, supports to read magnetic cards, read and write IC cards and RFID cards, and it is dust-proof, with the function of automatic card lock and card eject

The circuit interface is flexible that can be designed base on customers' requirement

Safe, reliable, and can be widely used in the terminal equipment of petroleum, petrochemical, telecommunications, finance, transportation and other industrial fields

In the card eject circuit aspect, we designed a booster tank circuit, proposed to amplify the low-power signal comes from the circuit-board which the customers' supply when the electric current limited, then stored into the capacitor, release when eject card, to avoid it share the circuit-board power when the electromagnet working

The input power is attached with a π-type filter circuit, to make sure the power supply voltage stable

Supports IC card reading and writing, supports 3 PSAM card and 1 ESAM card to working

Supports RFID card reading and writing (at the frequency of 13.56M)

Supports magnetic card reader (magnetic track 2, 3)

Automatic card lock

Anti-clogging and dust-proof

Main material is made of PC + 20% G, assembled with resistant metal column, make sure the product anti-destructive and good insulation

Designed with a drop-down contact point structure, the contact pin is made of beryllium bronze which covered with gold, rust-proofed, contact resistance <100mΩ, won’t fatigue and deform even work for 0.5 million times

Use patented technology in the card lock and card eject structure, make sure the working lifespan reached 500,000 times

Good leak-proof ability of the card pedestal
