Payment card reader module with motorized card reader and pinpad for payment machineNew

Payment card reader module with motorized card reader and pinpad for payment machineNew

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Description

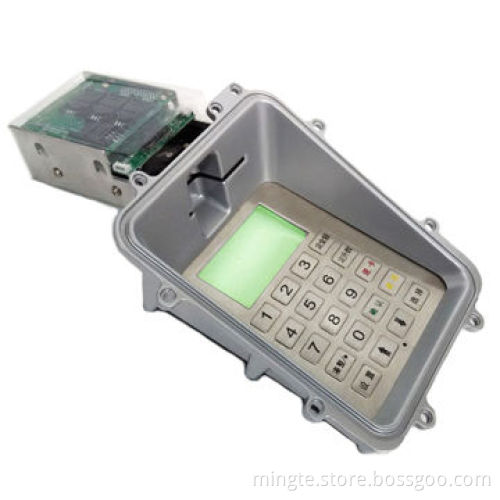

This module is the combination of manual insertion card reader MT318-120 and explosion-proof pin-pad, use Aluminum frame
Supports contact IC card read and write, RF module can be customized, manual insert and eject card, safe stable and reliable, can be used for outside machines like patrol and gasoline dispenser, self payment machines

Functions:

Reading and writing of RF cards that comply with 14443-A and 14443-B standards
Reading and writing of IC cards that comply with EMV standard
Automatic card locking and ejection

Technical features:

Industrial design
Friction-less drop IC card contact structure
Anti-blocking and dust-resistant
Quake-proof design, patented by national authorities
Standard RS232/TTL interface

Specifications:

Working voltage range: 7-15V
Maximum current: 150mA (9.0V)
Working lifespan: more than 500,000 times of operating
Operating temperature range: -40 to 70°C
Relative humidity range: 0-90% RH (non-condensing)

Applications:

Self-service oiling machines
Electronic wallets
Automatic vending machines
Multimedia query machines

This module is the combination of manual insertion card reader MT318-120 and explosion-proof pin-pad, use Aluminum frame

Supports contact IC card read and write, RF module can be customized, manual insert and eject card, safe stable and reliable, can be used for outside machines like patrol and gasoline dispenser, self payment machines

Reading and writing of RF cards that comply with 14443-A and 14443-B standards

Reading and writing of IC cards that comply with EMV standard

Automatic card locking and ejection

Industrial design

Friction-less drop IC card contact structure

Anti-blocking and dust-resistant

Quake-proof design, patented by national authorities

Standard RS232/TTL interface

Working voltage range: 7-15V

Maximum current: 150mA (9.0V)

Working lifespan: more than 500,000 times of operating

Operating temperature range: -40 to 70°C
