Manual insert card reader, read of magnetic stripe cards, track 1/2/3

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

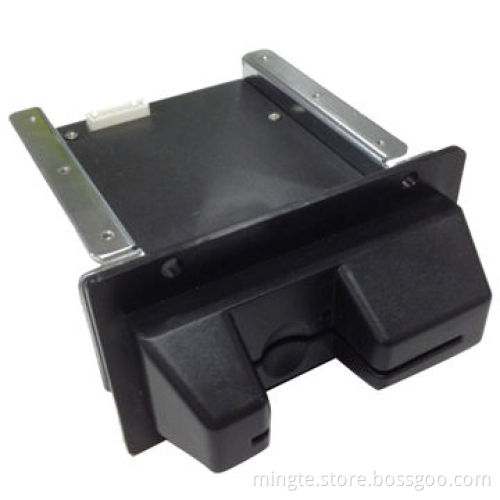

MT160 product overview:

Technical features:
- Product modular design, safe and reliable, comply with requirements of PCI security certification
- Read and write of contact IC cards, read of magnetic cards
- Intelligent tamper detection
- Communication data encryption processing
Performance indexes:
- Working voltage: 12V DC, ±5%
- Working current: <100mA
- Interface: RS232
- Card specifications:
  - Length: 85.47 to 85.72mm
  - Width: 53.92 to 54.03mm
  - Thickness: 0.76 ±0.08mm
- Working life: >500,000 times of operation
- Error rate of reading or writing cards: <1‰
- Environment condition:
  - Working environment: -40 to 65°C, 0 to 90 % RH (non-condensing)
  - Storage environment: -50 to 80°C, 0 to 95 % RH (non-condensing)
- Dimension: 120x90x50.5mm (without card slot) and 114x72x38.2mm (without card slot)
Applicable fields:
- Self-service terminal
- Oiling machine
- Multimedia query machine
- Multimedia telephone

Technical features:

Product modular design, safe and reliable, comply with requirements of PCI security certification
Read and write of contact IC cards, read of magnetic cards
Intelligent tamper detection
Communication data encryption processing

Performance indexes:

Working voltage: 12V DC, ±5%
Working current: <100mA
Interface: RS232
Card specifications:
- Length: 85.47 to 85.72mm
- Width: 53.92 to 54.03mm
- Thickness: 0.76 ±0.08mm
Working life: >500,000 times of operation
Error rate of reading or writing cards: <1‰
Environment condition:
- Working environment: -40 to 65°C, 0 to 90 % RH (non-condensing)
- Storage environment: -50 to 80°C, 0 to 95 % RH (non-condensing)
Dimension: 120x90x50.5mm (without card slot) and 114x72x38.2mm (without card slot)
