Product Description

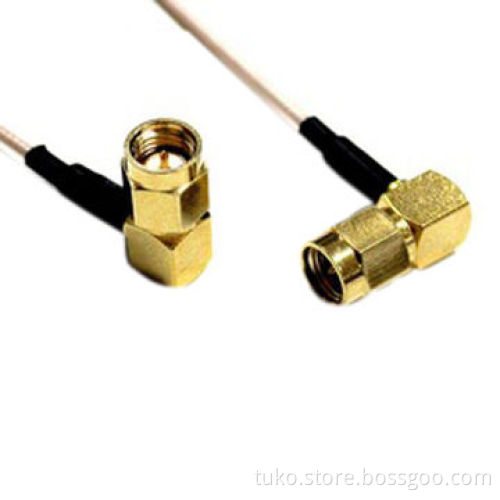

SMA RG male connector for RG316 cable /SMA pigtail

Mechanical Characteristics

Characteristic impedance: 50Ω

Frequency range: 0-7.5GHz

Withstand voltage: 4000V, 50Hz

Working voltage: 2500V, 50Hz (see level)

Insulation resistance: ≥100,000mΩ

Contact resistance inner conductor: ≤1.0mΩ

Outer conductor: ≤0.5mΩ

RF leakage (1GHZ): Flexible ≥128dB

3rd order intermodulation: ≥160dBc

Materials:

Pin conductor: Brass-Au plated

Shell: Brass-CuSnZn3 plated

Socket: Phosphor bronze / Beryllium copper--Ag plated

Crimping suite: Copper-CuSnZn3 plated

Insulator: PTFE/PFA
