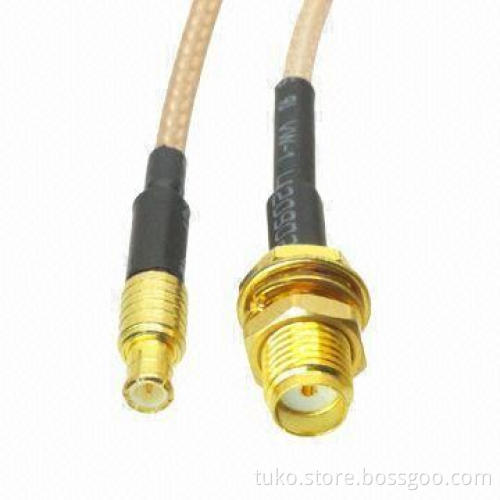

SMA Female to Straight MCX Male Cable, 50Ω Impedance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

Frequency range: DC to 6GHz

Connector: SMA female to straight MCX male

Cable type: RF1.13/RG178/RG316

Cable length: 100mm or customized

Impedance: 50Ω

Temperature: -40 to +85°C

Rated voltage: AC 60V

Contact resistance: 20mΩ maximum signal and ground

Withstand voltage: AC 200V

Insulation resistance: 500MΩ, minimum/DC 100V

VSWR: <1.5:1
