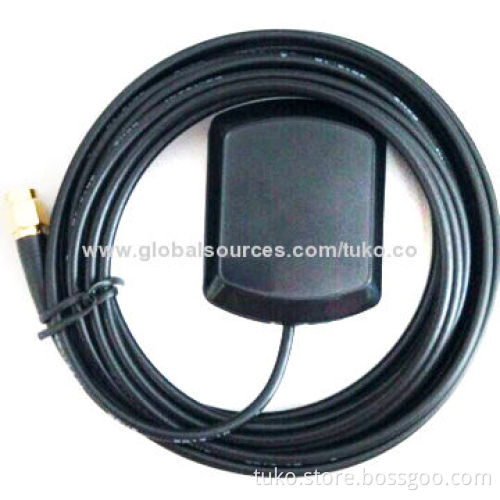

GPS+glonass antenna with SMA connector
  • GPS+glonass antenna with SMA connector
  • GPS+glonass antenna with SMA connector
GPS+glonass antenna with SMA connector
GPS+glonass antenna with SMA connector

GPS+glonass antenna with SMA connector

Get Latest Price
Payment Type:
L/C, T/T, Western Union, MoneyGram or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T, Western Union, MoneyGram or PayPal
Product Description
Product Description
  • Electrical characteristics:
    • Antenna:
    1. Antenna model: DAS1575(25*25*4)
    2. Frequency range: 1575.42 ±1.02 and 1610 ±8MHz
    3. VSWR: 1.5:1
    4. Band width: ≥10MHz for GPS and ≥20Mz for glonass
    5. Impendence: 50 ohm
    6. Gain: 5dBic based on 7x7cm  ground plane
    7. Polarization: RHCP
    8. Connector: SMA or customized
    • LNA:
    1. Frequency range: 1575/1609MHz
    2. DC voltage: 3.0 to 5.0V
    3. Gain: 30dB
    4. Output VSWR: 2
    5. Noise figure: 1.5
    6. DC current: 13.5mA (at 5.0V)
    • Overall (complete module  RF connector):
    1. Frequency range: 1575/1609MHz
    2. Output VSWR: 2
    3. Gain: 30 ±3dBic
    4. Impendence: 50Ω
  • Antenna:
  • LNA:
  • Overall (complete module  RF connector):
