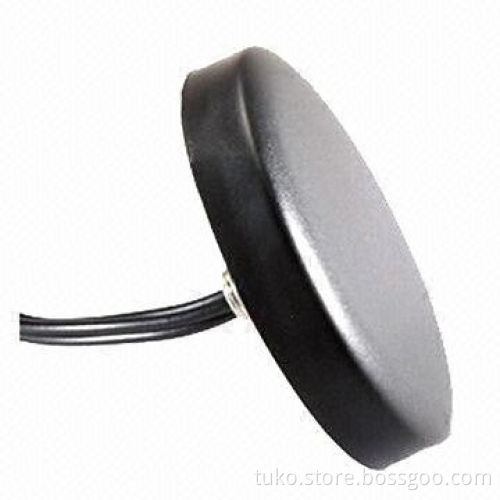

GPS/GSM WiFi Combination Antenna with Low Noise Amplifier

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

Voltages: 2.2 to 5V

Current range: 5 to 15mA

Center frequency: 1575.42 ±3MHz

VSWR: 1.5:1

Bandwidth: ±5MHz

Impedance: 50Ω

Polarization type: RHCP LNA or filter

Typical LNA gain: 28±2dB (without cable)

Noise figure: 1.5dB

Size: 80 x 15mm

Frequencies: 824 to 894 or 1710 to 1,990MHz880 to 960 or 1,710 to 1,990MHz 2,400 to 2,500MHz

VSWR: 2.0:1 (5m)

Impedance: 50Ω

Cable: RG174, 3 or 5m

Connectors: SMA, SMB or MCX

Housing color: black

Environment:

Working temperatures: -40 to 8°C

Working humidity range: 55 to 75%RH

Waterproof grade: IP67
