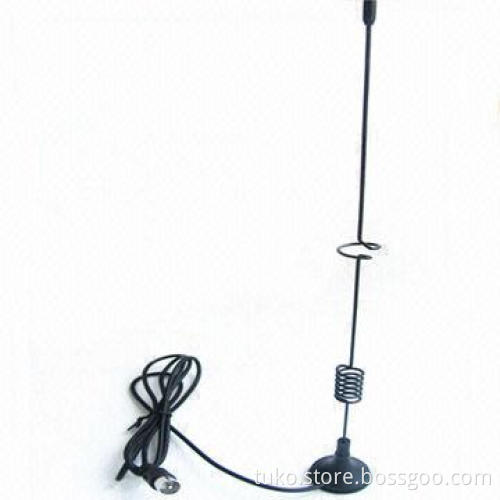

3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range
  • 3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range
  • 3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range
  • 3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range
  • 3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range
3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range
3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range
3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range
3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range

3G Antenna with Magnetic Base and 800/900/1800/1900/2170MHz Frequency Range

Get Latest Price
Payment Type:
L/C, T/T, Western Union, MoneyGram or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T, Western Union, MoneyGram or PayPal
Product Description
Product Description
  • Electronic specifications:
    • Frequency range: 800/900/1800/1900/2170MHz
    • VSWR: 1.5:1
    • Bandwidth: ±90/280MHz
    • Gain: 7.0dBi
    • Polarization: vertical
    • Radiation: omni directional
    • Maximum input power: 50W
    • Impendence: 50 ohms
    • Maximum wind speed: 200kph
  • Mechanical specifications:
    • Size: 310mm (high)
    • Weight: <250g
    • Cable: 3m RG174 or customized
    • Connector: IEC or customized
    • Base material: black ABS
  • Environment specifications:
    • Working temperature: -40 to +85°C
    • Storage temperature: -40 to +85°C
    • Vibration: sine sweep 1g (0-p), 10 to 50 to 10Hz each axis
    • Humidity: 95 to 100% RH
    • Weatherproof: 100%
    • MTBF = 1x10-6/piece/h: 40°C ±5°C, 2000 pieces for 480h
  • Frequency range: 800/900/1800/1900/2170MHz
  • VSWR: 1.5:1
  • Bandwidth: ±90/280MHz
  • Gain: 7.0dBi
  • Polarization: vertical
  • Radiation: omni directional
  • Maximum input power: 50W
  • Impendence: 50 ohms
  • Maximum wind speed: 200kph
  • Size: 310mm (high)
  • Weight: <250g
  • Cable: 3m RG174 or customized
  • Connector: IEC or customized
  • Base material: black ABS
  • Working temperature: -40 to +85°C
  • Storage temperature: -40 to +85°C
  • Vibration: sine sweep 1g (0-p), 10 to 50 to 10Hz each axis
  • Humidity: 95 to 100% RH
  • Weatherproof: 100%
  • MTBF = 1x10-6/piece/h: 40°C ±5°C, 2000 pieces for 480h
