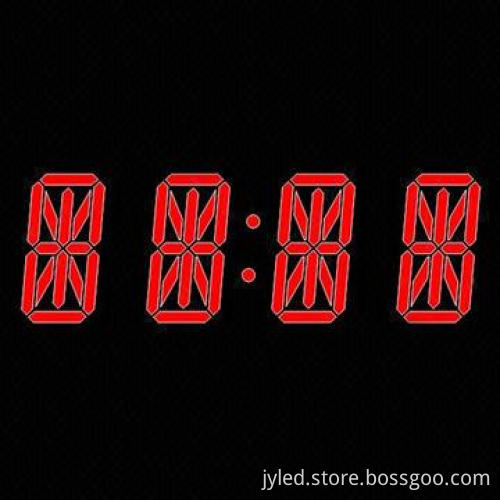

4-digit 14-segment LED Display

Get Latest Price

Payment Type:: L/C, T/T, PayPal, Western Union or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, PayPal, Western Union or MoneyGram

Product Description

Features:

Dimensions: 48.0 x 20.0 x 8.0mm

Color: red

Application: 4-digit 14-segment LED display

OEM/ODM accepted

Luminous evenly distributed on each segment

ISO 9001:2008, SGS and RoHS standard

Various sizes and colors upon your option

Low power consumption

Easy to assemble on printed circuit board

Specification:

Lens color: optional black, gray

PCB polarity: common anode/cathode

Absolute maximum ratings: (Ta=25°C)

Power dissipation: 50mW

Peak forward current: 100mA

Reverse voltage: 5V

Operating temperature: -25-85°C

Storage temperature: -30-85°C

Storage humidity: 45-85%

Storage and soldering condition:

Store with care: storing the units in bad condition will causethe reflector sheet and decrease it's adhesive power, store theproduct under the condition of 25 ± 10°C temperature and65 ± 20°C RH humidity

The soldering temperature is 260 ± 5°C and solderingtime should be less than 3 seconds, and soldering iron power shouldbe less than 30W

The soldering point should be farther than 1.6mm from body

Our advantage:

Your inquiry related to our products will be replied in 24hours

Experienced staffs to answer your inquiries in fluentEnglish

Providing OEM and ODM service

Protection of your sales area, ideas of design and all yourprivate information

No matter big order or small order, we will serve you with bestquality and service

Advanced equipment and good materials: ASM machine, excellentchips and epoxy resin

Lifespan: 80,000-100,000 hours
