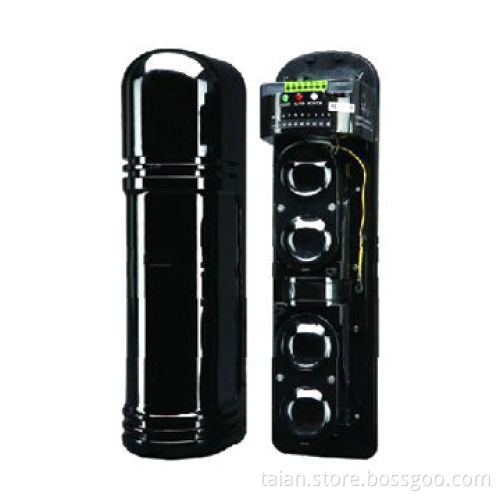

Outdoor Perimeter 4 Beams Active Photoelectric Intruder Detector

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Number of beams: 4 beams

Survey way: 4 beams blocked simultaneous

Optical source: infrared digital pulse beam

Response speed: 35-700msec adjustable

Contact rating: AC/DC 30V 0.5A maximum

Power supply: DC 13.8-24V, AC 11-18V P 15W

Power consumption: 100mA, 105mA

Operating temperature and humidity: -25 to 55°C, 5-95%RH

Dimensions refer to its diagram

Tamper output contact output: NC contact rating DC 24V 0.5A maximum

Optical axis adjustment (H): 180 (90°)

Optical axis adjustment (V): 20° (10°)

Viewfinder window style

Protection against dew, frost calefaction housing (optional)

Material: PC resin

Gross weight: 2,500g
