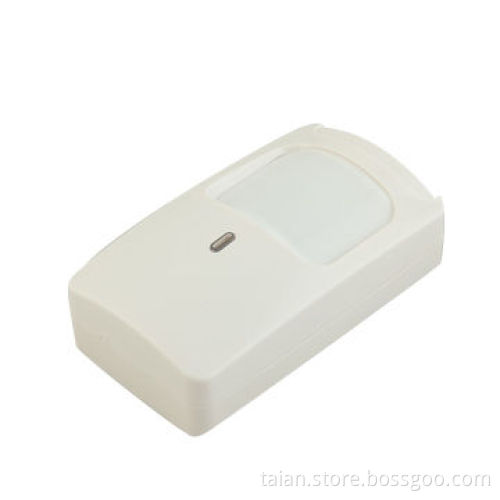

Honeywell Dual PIR Intelligent Active Infrared Sensor

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Improved EMI immunity
Surface-mounted design reduces false activations due to RF interference
Attractive and sleek design
Mounting flexibility:
- Unit is easily mounted on walls or in corners for a full range of coverage
- With subtle corner mounting knockouts, the IS220T maintains its streamlined aesthetics no matter where it is placed
Sabotage-resistant lens design:
- Lens wraps around a retainer, making it more stable and difficult to sabotage
Selectable sensitivity:
- Sensitivity can be adjusted to match installation requirements
Tamper switch:
- Sealed tamper switch signals before any enclosure access is possible
White light immunity:
- A white light absorbing, black bug guard dramatically increases white light immunity to greater than 6,500 lux, reducing the chance of false activation
Bug guard:
- Prevents insect access into the sensor optics, reducing the chance of false activation

Applications:

Designed for residential and light commercial applications

Detection method: dual element passive infrared

Coverage: 40 x 40 (12 x 15m)

Detection zones: 44 long range, 14 intermediate, 8 lower, 4 look-down (2 fields of view per PIR finger)

PIR sensitivity:

DIP switch is optional:
- Low: 3-5 steps PC2
- High: 2-4 steps PC1

LED enabled: can be enabled/disabled by a dip switch

Mounting height: 7ft, 6 inches (2.3 meters)

Power requirements: 10-14V DC, 7mA, 12V DC

Alarm relay: form A (NC)/90mA
