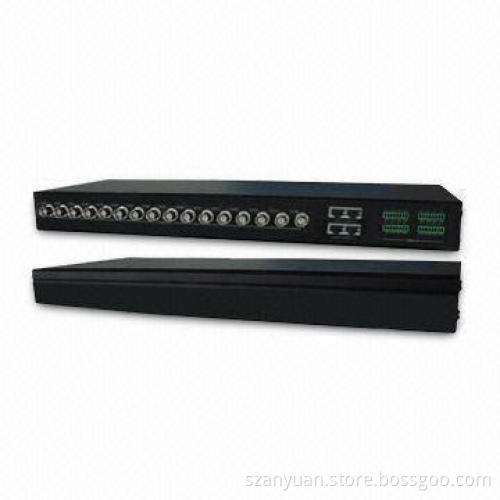

RJ45 UTP Port Video Balun with 6MHz Frequency Response and 100Ω Data Connector

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Features:

Device is capable of receiving and transmitting videos signalover UTP cable
Specification: 16-ch passive video/data/transceiver
Video:
- Frequency response: DC to 6MHz
- Mode: common and differential
Rejection: 15kHz, 6MHz 60dB type
Audio/data: no
Power:
- Voltage: 12V DC
Impedance: coax, male BNC: 75Ω UTP (screw less) terminalblock or UTP RJ45
Data connector: 100Ω
Wire type: one unshielded twisted pair 24 to 16AWG (0.5 to31mm) per video signal
DC loop resistance: 52Ω per 1,000ft (18Ω per100m)
Surge suppression:
Control:
UTP port: RJ45 and terminal block
Dimensions: 432 x 185 x 50mm
Weight: 2,200g
Environment temperature: -10 to +50°C
Humidity: 0 to 95%
