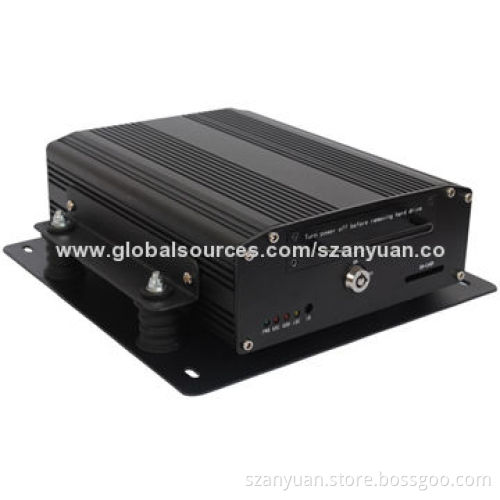

Mobile DVR, Supports GPS, 2.5'' HDD and USB, with Simultaneous Audio and Video Recording

Mobile DVR, Supports GPS, 2.5'' HDD and USB, with Simultaneous Audio and Video Recording

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Operation language: English/Chinese/traditional Chinese/other

Equipment parameters: graphical menu interface (OSD menu)

Password security: two-level management of user password and administrator password

Video input: 4CH composite video input

Video output: 1CH composite video output

Video display: single-picture and quad-picture display

Video standard: PAL/NTSC

Image compression: H.264 main profile, compressed resource, 25 frames D1/s (300 frames, CIF/s)

Audio input: 4CH audio input

Audio output: 1CH audio output

Recording manner: synchronous recording of audio and video

Image format: CIF/HD1/D1, optional

Video streaming standard: ISO 14496-10

Video bit rate:

CIF: 384Kbps (low), 512Kbps (medium), 768Kbps (high)
HD1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)
D1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)

Audio bit rate: 8KB/s

Data storage: support 64GB SD card/2T hard disk

Alarm input: 4 alarm inputs, low-level alarm for less than 4V, high-level alarm for more than 4V

Alarm output: 2 alarm outputs, high-level output at 12V and 5V

RS485 interface: support 1 RS485 interface

RS232 interface: support 1 RS232 interface

Acceleration sensor: built-in acceleration G-sensor

Software kit: play back the video file on PC and analyze the vehicle information in the file

Software upgrade: file via SD

Power input: 8-36V, input voltage between +8V and +36V, when the voltage is lower than 8V or higher than 36V for a long period of time, the equipment will shut down automatically and enter into protected mode

Power output: 12V, output voltage 12V (+/-0.2V), maximum current 2A

Car key signal ≤4V: car key on, ≥5V car key off

Video input resistance: 75Ω, video input resistance at each channel should be 75Ω

Video output voltage: 2Vp-p, for output of a 2Vp-p CVBS analog signal, the displayed input resistance shall be 75Ω

I/O interfaces: 0-4V low-level alarm

Over 4V: high-level alarm

CIF: 384Kbps (low), 512Kbps (medium), 768Kbps (high)

HD1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)

D1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)
