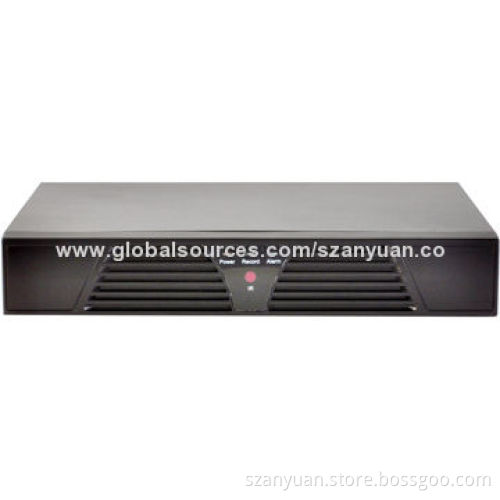

4CH Hybrid DVR and Network DVR, H.264/960H, RS485, Support Mobile Surveillance, Cloud, 3G and Wi-Fi

4CH Hybrid DVR and Network DVR, H.264/960H, RS485, Support Mobile Surveillance, Cloud, 3G and Wi-Fi

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Main procession: high performance embedded microprocessor

Operating system: Embedded Linux

System resources:

Pentaplex function: live, recording, playback, backup and remote access

User interface: GUI, on-screen menu tips

Display: 1/4

Control device: front panel, USB mouse, IR remote controller

Video standards:

PAL: 625TVL, 50fps
NTSC: 525TVL, 60fps

Video compression: H.264 main profile

Video recording: D1

PAL: 1-25fps
NTSC: 1-30fps

Encode capacity: 4CH 960H real-time (DVR mode)

TV output adjustment: triplex (recording, playback, network)

Audio compression: G711A

Bidirectional talk: supported

Recording mode: manual>continuous

Playback: maximum 4 channels playback simultaneously, pause, stop, remind, fast play,

slow play, next file, previous file, repeat, shuffle, backup detection

Search mode: time/date, exact search (accurate to second)

HDD management: hard disk hibernation technology, HDD faulty alarm and raid (redundancy)

Backup mode: network download/flash stick

Video input: 4-channel, BNC, 1.0Vp-p, 75Ω

Video output: 1 channel TV output BNC, 1.0Vp-p, 75Ω, 1VGA output

HDMI output: 1 channel

Audio input: 1 channel

Audio output: 1 channel

Nte interface: RJ-45 (10M/100M)

PTZ control: 1 RS485

USB interface: 1 x USB2.0 port for mouse and backup

Hard disk: 1 SATA port (maximum 2048GB)

Power supply: 12V/4A

Power consumption: <10W

Working temperature: 0-55°C

Working humidity: 10-90% RH

Atmosphere pressure: 86-106kpa

Pentaplex function: live, recording, playback, backup and remote access

PAL: 625TVL, 50fps

NTSC: 525TVL, 60fps

PAL: 1-25fps

NTSC: 1-30fps
