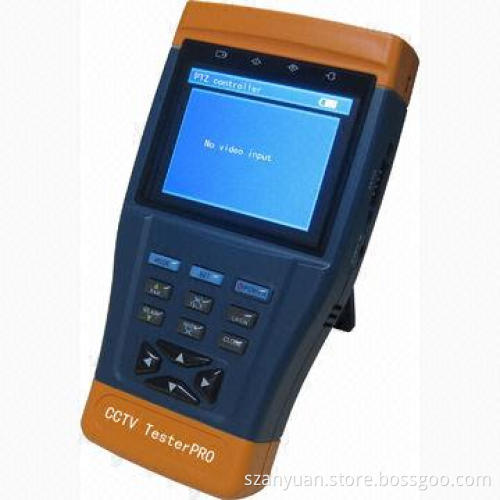

CCTV Tester with 3.5-inch TFT-LCD Monitor, PTZ Controller, Audio Input Test and Easy to Operate

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Developed for on-site installation and maintenance of videomonitoring system

Used for displaying video, controlling PTZ, DC 12V 1A power forcamera, audio input test, generating images, capturing data ofRS485 and testing LAN cable

Easy to operate and install

Signal mode: NTSC and PAL

Display: 2.8-inch digital TFT-LCD

Resolution: 960 x 240 pixels

LCD adjustment: brightness, contrast and saturation

Video in and out: 1-channel BNC input and 1-channel output

PTZ controller

Communication: RS232, RS422 simplex and RS485

PTZ protocol: compatible with more than 20 protocols such asPELCO-D/P, Samsung, Panasonic, Lilin and Yaan

Baud rate: 150, 300, 600, 1,200, 2,400, 4,800, 9,600 and19,200bps

Video signal generation

Color bar generation: output channel color bar video signal fortesting monitor or video cable

Output 12V DC and 1A power for camera

Audio input test: test pickup and other audio equipment on thefront end

RS485 data analyst

Data monitor: captures and analyzes the command data fromcontrolling device

Power adapter: 5V DC and 2A

Battery: built-in 3.7V lithium polymer battery, 3000mAh

Rechargeable: after charging 3 to 4 hours and working timelasts 12 hours

Low consumption energy-saving technology

Working temperatures: -30 to 70°C

Working humidity: 30 to 90% RH

Dimensions: 176 x 94 x 36mm

Weight: 340g
