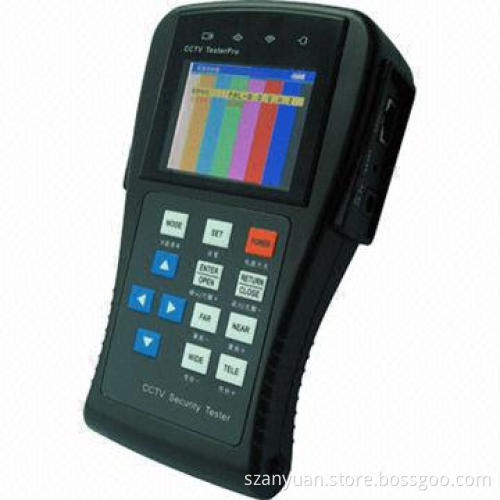

CCTV Security Tester with 2.8-inch TFT LCD Screen, 12V DC/1A Power Output and Audio Input

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

With 2.8-inch TFT LCD screen

Resolution (H x V): 960 x 240 pixels

Power output: 12V DC and 1A

Baud rate: 150, 300, 600, 1,200, 2,400, 4,800, 9,600 and19,200bps

Pan/tilts P/T unit, zoom in/out lens, adjusts focus, aperture,sets and calls preset position

Tests audio input

Automatically adapts and displays video format of NTSC andPAL

Video generating, PAL/NTSC multi-system color bar videogenerator (7 systems switch able and transmit/receive 7 systemscolorful images)

Captures and analyzes RS485 controlling data to help technicianto find out problem

Powerful in testing LAN cable, measuring connecting status,displaying sequence of connection and number of LAN cable

Multi-protocol, -interface and -baud rate

Supports RS232, RS485 and RS422 interface

Baud rate range: 150,600 to 19,200bps

Li-ion polymer battery (3.7V DC and 2,800mAh)

Device employs advanced power control and protectioncircuit

Device high power efficient, energy-saving andeco-friendly

Can last 15 hours for normal use after charging for 4hours

Signal modes: NTSC and PAL (adapts automatically)

LCD adjustments: brightness, contrast and saturationadjustable

Video in/out: one channel BNC input and output

Video output mode: 1.0Vp-p

Communication: RS232, RS422 simplex and RS485

PTZ protocols: compatible with more than 20 protocols such asPelco-D/Pelco-P, Samsung, Panasonic, Lilin and Yaan

Color bar generation: output channel color bar video signal fortesting monitor or video cable

UTP cable test: test UTP cable connection status and display inscreen

Reads number of test box
