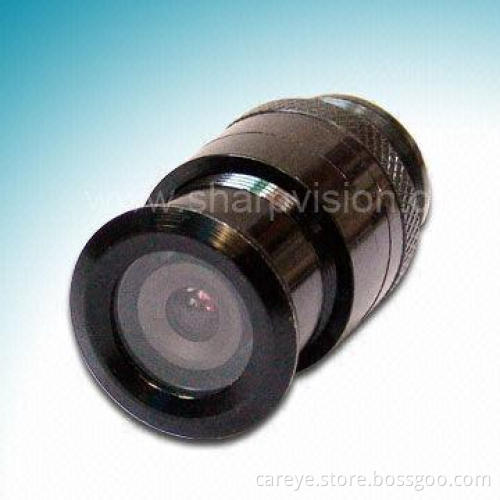

Car Rearview Camera with Waterproof and Weather-resistant Housing for Outdoor Use

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Waterproof and weather resistant housing for outdoor use

Embedded type

1/3-inch color CCD sensor

Without audio and IR

Image device: Sharp

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492

Sensing area: 4.9 x 3.7mm

Scanning system: 2:1 interlace

Synchronized system: internal

Resolution: 420TVL

Horizontal synchronized frequency: 15.625 to 15.734kHz

Vertical synchronized frequency: 50/60Hz

Minimum illumination: 0.1 lux/F1.2

Video output: 1.0Vp-p, 75Ω

Gamma consumption: 0.45

AGC: automatic

S/N ratio: better than 48dB

White balance: automatic

Electronic shutter: 1/60 (NTSC)/1/50 (PAL) to 1/10,000 seconds

BLC: automatic

Current consumption: 100mA (maximum)

Power supply: 12V DC

Operating temperatures: 20 to 70°C, 95% RH (maximum

Storage temperatures: 40° to 80°C, 95% RH (maximum)

Lens: F = 3.6mm/F = 2.0

Lens angle: 92°
