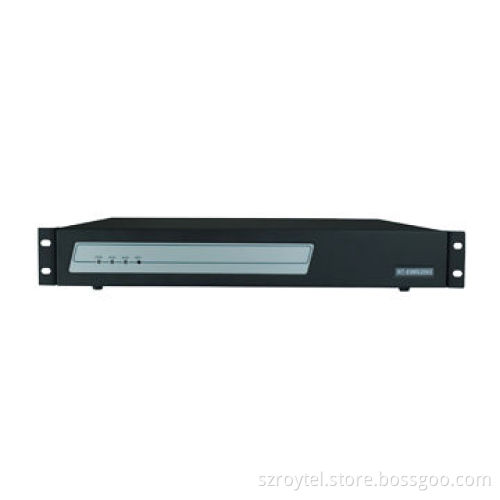

E1 PRI Trunking Gateway, Supports SS7, ISDN PRI, R2, V5.2, QSIG, SIP, H.248 and MGCP
  • E1 PRI Trunking Gateway, Supports SS7, ISDN PRI, R2, V5.2, QSIG, SIP, H.248 and MGCP
E1 PRI Trunking Gateway, Supports SS7, ISDN PRI, R2, V5.2, QSIG, SIP, H.248 and MGCP

E1 PRI Trunking Gateway, Supports SS7, ISDN PRI, R2, V5.2, QSIG, SIP, H.248 and MGCP

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Functions:
    • Converter: E1 (ISDN PRI, SS7, R2, V5.2, QSIG) to SIP, H.248 and MGCP
    • Digital trunks to IP
    • Optional E1/T1 ports, 1, 2, 4, 6 and 8 ports are available
    • RT-EIMS2002 E1/T1 digital trucking gateway realize sintroversion of IP packets and PCM through IP interface and T1/E1 interface
    • Usually deployed on PSTN end office and enterprises
  • Specifications:
    • Dimensions: (W)436x(D)400x(H)66mm
    • Weight: 7.5kg
    • Management interface
    • Console
    • 1 console interface, RJ45, 115200-bit/s data rate
    • Network interface
    • LAN interface 1
    • WAN Interface 1
    • Business interface
    • E1/T1 board
    • 1E1/1T1/board, 2E1/2T1/board and 4E1/4T1/board
    • Signaling protocol SIP
    • Supports RTP/RTCP
    • Supports media
    • Speech coding
    • Supports G.711A/μ/G.723.1/G.729A
    • DTMF relay
    • Supports ECHO suppression
    • Supports QoS
    • Supports capacity
    • Maximum E1/T1 quantity
    • Maximum 8E1 for single
    • Convergence: 1:1 (G.711)
    • Functions: BHCC 36,000
    • Maximum concurrent call quantity
    • NO convergence (G.711)
    • Call completing rate: >99
    • Average speech coding dynamic switching time: <60msMTBF
    • MTBF: 62 years
    • Work environment temperature: 0 to 50
    • Relative humidity: 10% to 90% (no condensing
  • Converter: E1 (ISDN PRI, SS7, R2, V5.2, QSIG) to SIP, H.248 and MGCP
  • Digital trunks to IP
  • Optional E1/T1 ports, 1, 2, 4, 6 and 8 ports are available
  • RT-EIMS2002 E1/T1 digital trucking gateway realize sintroversion of IP packets and PCM through IP interface and T1/E1 interface
  • Usually deployed on PSTN end office and enterprises
  • Dimensions: (W)436x(D)400x(H)66mm
  • Weight: 7.5kg
  • Management interface
  • Console
  • 1 console interface, RJ45, 115200-bit/s data rate
  • Network interface
  • LAN interface 1
  • WAN Interface 1
  • Business interface
  • E1/T1 board
  • 1E1/1T1/board, 2E1/2T1/board and 4E1/4T1/board
  • Signaling protocol SIP
  • Supports RTP/RTCP
  • Supports media
  • Speech coding
  • Supports G.711A/μ/G.723.1/G.729A
  • DTMF relay
  • Supports ECHO suppression
  • Supports QoS
  • Supports capacity
  • Maximum E1/T1 quantity
  • Maximum 8E1 for single
  • Convergence: 1:1 (G.711)
  • Functions: BHCC 36,000
  • Maximum concurrent call quantity
  • NO convergence (G.711)
  • Call completing rate: >99
  • Average speech coding dynamic switching time: <60msMTBF
  • MTBF: 62 years
  • Work environment temperature: 0 to 50
  • Relative humidity: 10% to 90% (no condensing
